Custom 48V, 51.2V Lithium Ion Golf Cart Battery 100Ah, 105Ah
Bonnen lithium battery packs with integrated golf cart battery system. The batteries are specially designed to replace lead-acid batteries, these are easy to drop-in replacement in Club Car and EZ-GO vehicles.
|No.||Item Name||Basic parameter|
|2||Battery system whole energy(KWh)||Rated：5.4kWh|
|3||Battery system whole capacity（Ah）||Rated：105Ah|
|4||Battery system working temperature||Discharge -20~60℃，|
|5||Battery surrounding environment relative humidity||10%~85%|
|6||Battery storage temperature||-20～45℃|
|7||Battery standard charging current(23±2℃)||50A|
|8||Battery Max charging current(23±2℃)||100A|
|9||Battery standard discharging current(23±2℃)||50A|
|10||Battery continuous discharging current(23±2℃)||100A|
|11||Battery discharge peak current(5s)(23±2℃)||300A|
|12||Battery system insulation resistance testing value||≥20mΩ|
|13||Insulation Resistance Testing||≥20MΩ|
|14||Waterproof grade of the battery case||IP67|
|15||Cooling system||Air cool|

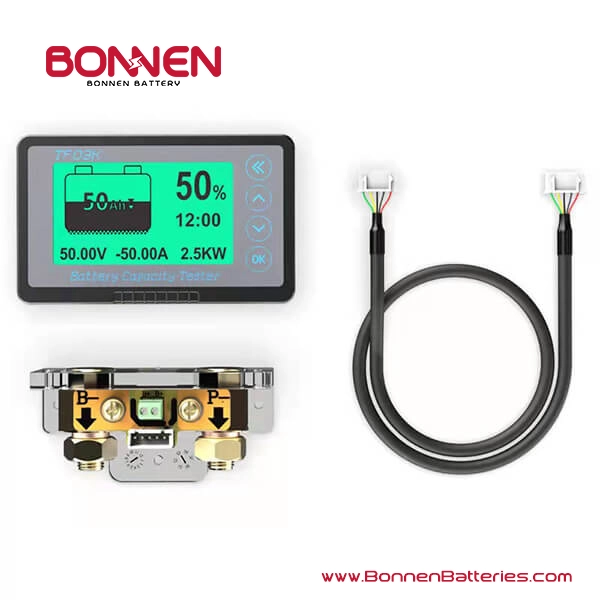

|16||Display||With battery monitor, coulometer|
- Low internal resistance
Methods of reducing the internal resistance:
**Using carbon coated aluminum foil
**Multiple electrode tab design
**Increasing the width of electrode tab
**Coating PVDF on battery separator
- Long lifespan
Usable for more than 4,000 charge-discharge cycles
> 4 times than lead acid battery
- Excellent performance in high and low temperature
Usable in extremely cold and hot environments (-20 to 60 ºC)
- Finished Packs
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to water
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
1): Are you a manufacturer or a trader?
Re: We are an expert in lithium battery manufacturer. We have successfully provided all kinds of comprehensive lithium battery solutions to different counties for about 10 years.
2): What brand and chemistry of batteries do you use?
Re: We will use LifePo4 or NMC lithium battery cells for your solution. In order to guarantee the quality of performance. We normally use the cell or module from Tier 1 battery cell manufacturer in the world. For example, we will use the lithium battery cells from GOTION or EVE. GOTION is the lithium battery cell supplier of Volkswagen. EVE is the lithium battery cell supplier of Daimler.
3): Is there a discount available if I order large quantities?
Re: Yes, with more bulk size orders, prices will be cheaper.
4): Do you offer battery chargers?
Re: Yes, we do. Please mention a charger when sending an inquiry. Please be advised that our charger cost is not included in the price of the battery.
5): What is your company’s intelligence like?
Re: Our company has ISO9001 certification. Most of our products are UN38.3, IEC62133, and CB certified.
6): When will my order be shipped?
Re: Normally 30 days after payment is received, but it can be negotiated based on order quantity and production schedule.
7): What is the quality guarantee period?
Re: 3 years!
8): How much range can I expect from an Electric Car battery pack?
Re: Currently, electric vehicles have a range of more than 200km per charge. It also needs to consider the factors of battery system total energy, temperature, rolling resistance, acceleration etc.
9): Is the Electric Car battery system waterproof?
Re: Bonnen Battery offers custom IP65 and IP67 levels. The IP67 level can at least ensure that the battery pack is immersed in water at a depth of one meter. This will not cause problems for a certain period of time.
