(Last Updated On: 02/06/2023)
  • 96V 150AH Lithium Battery Pack for Electric Utility Vehicles from Bonnen Battery
  • 96V 150AH Lithium Battery Pack for Electric Utility Vehicles from Bonnen Battery
  • 96V 150AH Lithium Battery Pack for Electric Utility Vehicles from Bonnen Battery

  • Advanced Battery Management System (BMS): Experience optimal performance, efficient power distribution, and enhanced safety features thanks to our state-of-the-art BMS.

  • IP67: Bonnen batteries meet the IP67 standard, guaranteeing high resistance to dust and water ingress for added durability.

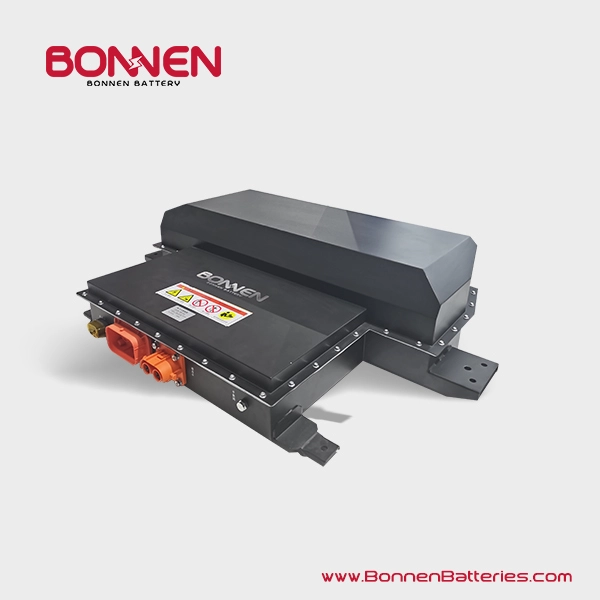

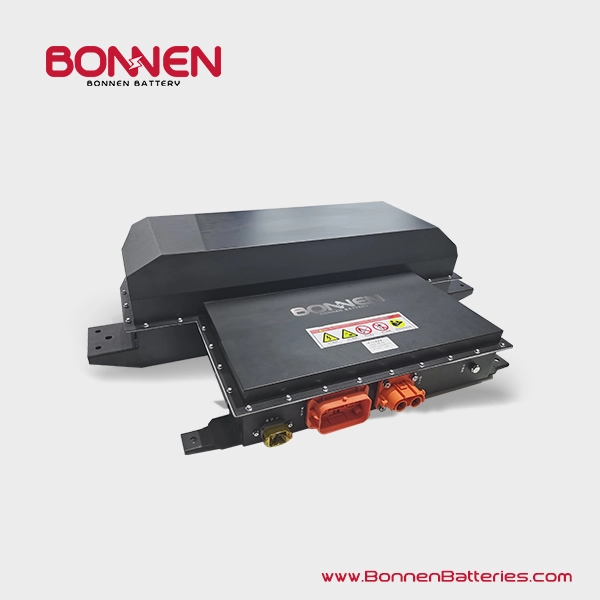

96V 150AH Lithium Battery Pack for Electric Utility Vehicles – Long-lasting and High-performance EVS Battery Solution

Looking for the ultimate power solution for Electric Utility Vehicle project? Look no further than Bonnen’s revolutionary EV lithium batteries. Our batteries are designed with robust and modular packing structures, delivering maximum versatility and ensuring reliable electrical protection with high energy density. With customizable designs tailored to meet the unique requirements of your utility vehicle project, our automotive-grade batteries provide unprecedented range capabilities that go beyond mere conceptual designs. Thanks to our advanced mass production capabilities, you can expect enhanced efficiency on your future journeys.

  • Custom Battery Case Design for your projects.

  • Extended Lifespan: Enjoy a lifespan of over 10 years

  • Superior Insulation: Our batteries offer excellent electrical insulation inside and outside the battery case, ensuring optimal safety and protection

  • Enhanced Performance: Bonnen EV lithium batteries deliver exceptional heat conductivity and outstanding safety performance, enabling efficient and reliable operation in various conditions

  • Advanced Battery Management System (BMS): Experience optimal performance, efficient power distribution, and enhanced safety features thanks to our state-of-the-art BMS.

  • IP67: Bonnen batteries meet the IP67 standard, guaranteeing high resistance to dust and water ingress for added durability.

Request A Quik Quote
No. Item Name Basic parameter
1 Voltage Range 75V—109.5V（96V Rated）
2 Battery System Whole Energy (KWH) Rated：14.4kWh
3 Battery System Whole Capacity(Ah) Rated ：150Ah
4 Battery system Working Temperature Discharge -20~55℃，Charge -0~55℃
5 Battery system Surrounding environment relative humidity 5%~95%
6 Battery system storage Temperature -20～25℃(3-6 Month，50%SOC)
-20～45℃(1-3 Month，50%SOC)
-20～60℃(≤1 Month，50%SOC)
7 Battery system Max. charging current 150A
8 Battery system Max. Instance  discharging current（10s） 300A
9 Battery system standard discharging current 100A
10 Battery system instant discharging current (Max.)（30s） 300A
11 Battery system Max. Continuous discharging current（30min） 150A
12 Insulation Resistance Testing( Ω）  (Main positive&Main Negative VS Battery case ≥20MΩ
13 Cooling system Air Cool
14 IP grade IP67
15 Battery weight 135Kgs

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.

1): Are you a manufacturer or a trader?

Re: We are an expert in lithium battery manufacturer. We have successfully provided all kinds of comprehensive lithium battery solutions to different counties for about 10 years.

2): What brand and chemistry of batteries do you use?

Re: We will use LifePo4 or NMC lithium battery cells for your solution. In order to guarantee the quality of performance. We normally use the cell or module from Tier 1 battery cell manufacturer in the world. For example, we will use the lithium battery cells from GOTION or EVE. GOTION is the lithium battery cell supplier of Volkswagen. EVE is the lithium battery cell supplier of Daimler.

3): Is there a discount available if I order large quantities?

Re: Yes, with more bulk size orders, prices will be cheaper.

4): Do you offer battery chargers?

Re: Yes, we do. Please mention a charger when sending an inquiry. Please be advised that our charger cost is not included in the price of the battery.

5): What is your company’s intelligence like?

Re: Our company has ISO9001 certification. Most of our products are UN38.3, IEC62133, and CB certified.

6): When will my order be shipped?

Re: Normally 30 days after payment is received, but it can be negotiated based on order quantity and production schedule.

7): What is the quality guarantee period?

Re: 3 years!

8): How much range can I expect from an Electric Car battery pack?

Re: Currently, electric vehicles have a range of more than 200km per charge. It also needs to consider the factors of battery system total energy, temperature, rolling resistance, acceleration etc.

9): Is the Electric Car battery system waterproof?

Re: Bonnen Battery offers custom IP65 and IP67 levels. The IP67 level can at least ensure that the battery pack is immersed in water at a depth of one meter. This will not cause problems for a certain period of time.
