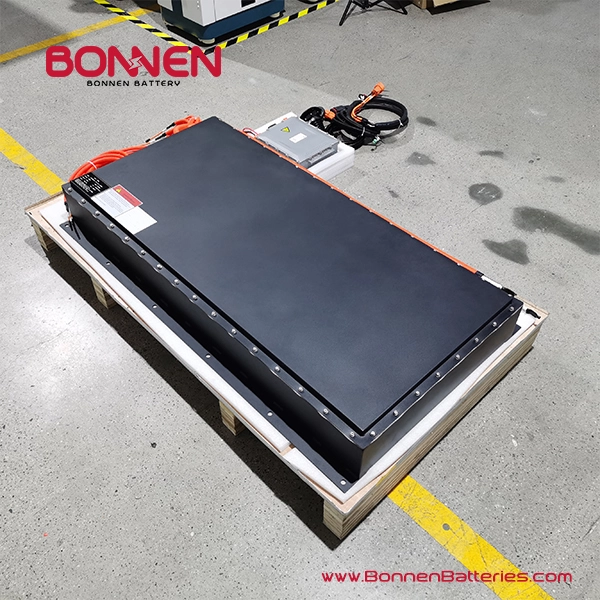

High-Performance 96V Lithium Battery – The Ideal 96V 200Ah LiFePO4 EV Battery Packs
Are you looking for the ultimate power source for your electric vehicle? Look no further than Bonnen’s revolutionary EV lithium ion batteries ⇱! Our batteries feature robust battery module structures, which provide maximum versatility, and an optional liquid cooling system, which ensures reliable electrical protection and high energy density. With customizable designs to meet your vehicle’s unique needs, our automotive-grade batteries ⇱ offer unprecedented ranges that are no longer just for concept designs. Thanks to our mass production capabilities, you can expect even greater efficiency on the road ahead. So, get ready to experience unparalleled performance and long-lasting reliability with Bonnen’s cutting-edge EV lithium batteries.
Free Custom Design
24/7 Engineer Support Services
Certification: Compliance with MSDS, UN38.3, CE, CB, IEC 62619, UL，ECE-R100
Product Features 96V Lithium Battery from Bonnen
–
| No. | Item Name | Basic Parameter |
| 1 | Voltage Range | 75V—109.5V（96VRated） |
| 2 | Battery System Whole Energy (KWH) | Rated：19.2kWh |
| 3 | Battery System Whole Capacity(Ah) | Rated ：200Ah |
| 4 | Battery system Working Temperature | Discharge -20~55℃，Charge -0~55℃ |
| 5 | Battery system Surrounding environment relative humidity | 5%~95% |
| 6 | Battery system storage Temperature | -20～25℃(3-6 Month，50%SOC) |
| 7 | -20～45℃(1-3 Month，50%SOC) | |
| 8 | -20～60℃(≤1 Month，50%SOC) | |
| 9 | Battery system Max. charging current | 200A |
| 10 | Battery system Max. Instance discharging current（10s） | 400A |
| 11 | Battery system standard discharging current | 100A |
| 12 | Battery system instant discharging current (Max.)（30s） | 300A |
| 13 | Battery system Max. Continuous discharging current | 200A |
| 14 | Insulation Resistance Testing( Ω） (Main positive&Main Negative VS Battery case | ≥20MΩ |
| 15 | Cooling system | Air Cool |
| 16 | IP grade | IP67 |
| 17 | Battery dimension | 1381*610*160mm |
| 18 | Battery weight | 186Kgs |
Optimized Performance for Specific Projects: Customization ensures the battery precisely meets the unique power, energy density, and size requirements of each electric vehicle project, eliminating over-speccing or under-performance issues.
Enhanced System Integration: Project-specific designs allow for seamless mechanical and electrical integration into the vehicle’s architecture, reducing design complexities and potential compatibility issues during assembly.
Cost-Effectiveness through Tailored Design: By only paying for the necessary specifications and features, procurement engineers can achieve better cost efficiency per project, avoiding the higher costs associated with modifying off-the-shelf solutions.
Improved Supply Chain Reliability: Working directly with a manufacturer capable of customization often leads to more direct communication, stronger supplier relationships, and greater transparency regarding production timelines and quality control.
Risk Mitigation via Dedicated Support: Custom projects typically come with dedicated engineering support, which helps in identifying and resolving potential design or performance issues early, minimizing risks associated with product development.
Scalability for Future Projects: A custom solution platform can often be adapted and scaled for subsequent projects, allowing for re-use of design principles and reducing future development cycles and costs.
Competitive Advantage through Innovation: Custom battery solutions can incorporate cutting-edge technologies or unique form factors, providing a distinct performance or packaging advantage for the end product in the market.
Compliance with Niche Regulations/Standards: For projects targeting specific regions or applications with unique regulatory requirements (e.g., specific safety standards, environmental certifications), customization allows for direct compliance integration from the outset.
Electric Leisure Vehicles / Golf Carts
Ideal for 96V systems requiring long range, high load capacity, and durable performance.
Electric Pickup Trucks / Light Duty Delivery Vehicles
Perfect for last-mile logistics, city cargo vans, and delivery vehicles that need frequent acceleration, climbing, and stop-and-go driving.
Patrol Cars / Security Vehicles / Sightseeing Shuttles
Designed for campuses, industrial parks, resorts, or residential areas where reliable range and weather resistance are critical.
Electric Trailers / Towing Vehicles / Light Haulers
Provides sufficient power for trailers, RV tow units, and small utility haulers.
Marine Auxiliary Power / Electric Propulsion ⇱
With IP67 protection and wide temperature tolerance, this battery can also serve as auxiliary power for boats, yachts, or marine systems.
Special Purpose Vehicles / Heavy Duty Operations
Ideal for mining vehicles, factory maintenance cars, and transport vehicles that demand long lifespan, high discharge rates, and robust durability.
Extreme Climate Electric Vehicles
Performs reliably in harsh weather conditions, from cold environments to hot climates, with operating temperatures from -20°C to +55/+60°C.
1. What makes the Bonnen 96V Lithium Battery different from other batteries?
The Bonnen 96V Lithium Battery is built with high-performance LiFePO4 cells, ensuring long-lasting power and safety. It’s designed for electric vehicles with superior charging speed and efficiency.
2. How long will the 96V 200Ah battery last?
This battery is built for durability, lasting up to 4,000 charge cycles, giving you reliable power for many years to come!
3. Is the 96V lithium battery safe for my electric vehicle?
Absolutely! Our LiFePO4 technology is known for its thermal stability, making it one of the safest battery options for electric vehicles. It’s designed to handle high loads and temperatures without risk.
4. Can I use this battery in extreme weather conditions?
Yes! This battery is designed to perform in a wide range of temperatures, from -20°C to 60°C (-4°F to 140°F), making it perfect for both hot and cold environments.
5. What type of vehicles can use this 96V lithium battery?
This battery is ideal for electric cars, trucks, and other high-powered vehicles that require a 96V power supply. It’s great for anyone looking to upgrade their vehicle to a more efficient power source.
6. How fast can I charge the 96V 200Ah lithium battery?
Charging time varies depending on the charger, but you can expect to fully charge the battery in about 6-8 hours with a high-quality charger.
7. Can I install the 96V lithium battery myself?
While we recommend professional installation to ensure optimal performance and safety, it’s designed with easy integration in mind, making it a straightforward installation for qualified technicians.
8. Does the 96V battery come with a warranty?
Yes, the 96V 200Ah battery comes with a 3-5 year warranty, so you can rest assured knowing your investment is protected.
9. How do I monitor the health of the 96V lithium battery?
The battery comes with a built-in Battery Management System (BMS) that helps monitor voltage, temperature, and overall performance to prevent issues before they arise.
10. What happens if I overcharge or undercharge the battery?
The BMS prevents both overcharging and undercharging to protect the battery. However, it’s always a good idea to follow proper charging procedures to maximize its lifespan.
11. Will this 96V battery work with my existing charger?
Most standard EV chargers should work with the Bonnen 96V battery, but it’s important to check the specifications of your charger to ensure compatibility.
12. How does the 96V 200Ah battery improve my vehicle’s performance?
By providing a stable and high-power output, this battery boosts acceleration, speed, and overall energy efficiency, ensuring your vehicle runs smoothly and with more power.
13. Is the 96V lithium battery environmentally friendly?
Yes! LiFePO4 batteries are known for being eco-friendly, as they contain non-toxic materials and are fully recyclable. It’s a great choice for anyone looking to reduce their environmental footprint.
