  • 403.2V 120Ah (48KWH) Electric Car Lithium Battery
  • 403.2V 120Ah (48KWH) Electric Car Lithium Battery
  • 403.2V 120Ah (48KWH) Electric Car Lithium Battery
  • 403.2V 120Ah (48KWH) Electric Car Lithium Battery

 403.2V 120Ah (48KWH) Electric Car Lithium Battery, Passenger Car, Nissan LEAF Replacement Lithium Battery

Bonnen Battery EV Batteries use a much higher quality lithium compared to competitors. Our engineers have design and tested a complete battery system that replaces outdated other batteries. Easy installation and the batteries require ZERO Maintenance. There is no need for multiple chargers and lengthy installation. Complete systems drop into the same location of the original battery system.

  • More than 10 years life cycles.

  • Light-weight: Light weight design, packed by aluminum plate and plastic components.

  • Module design: Reasonable capacity, can be assembled to a different voltage.

  • Insulation: Perfect electrical insulation, both inside and outside.

  • Performance: Good heat conductivity, safety performance.

  • No more maintenance.

Request A Quik Quote

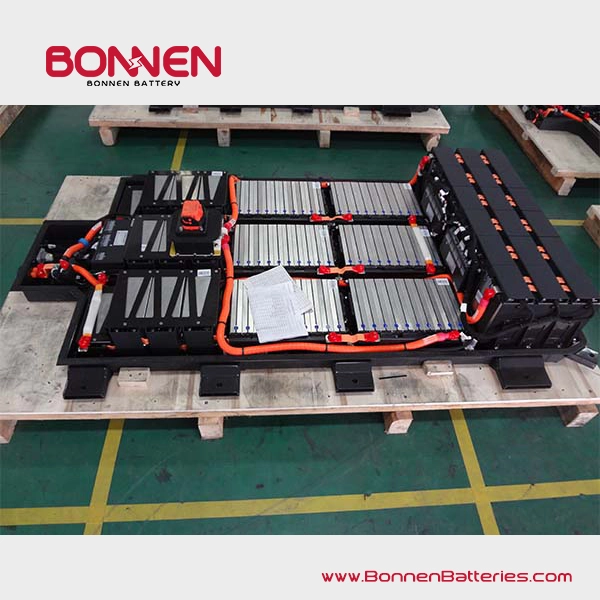

High Voltage 403.2V 120Ah lithium NMC EV battery pack for electric car, Nissan LEAF

No. Item Name Basic parameter
1 Cell & Method NMC/ Li(NiCoMn)O2, 112S3P
2 Dimension(L*W*H) 1m x 0.9m x 0.3m ( Can be adjustment )
3 Weight Approx 376KG
4 Rated Capacity 120Ah
5 Min Capacity 120Ah
6 High Rate Discharge Capacity ＞ 90% Rated Capacity
7 Discharge Capacity @ -20℃(-4℉) ＞ 70% Rated Capacity
8 Nominal Voltage 403.2V
9 Energy 48.4 kWh
10 Internal Impedance(@ 1000Hz.) ≤25 mΩ
11 Cycle Life ＞2000 Cycles @ 1C 100% DOD
12 Months Self Discharge ≤ 5% @ 25℃(77℉)
13 Efficiency of Charge 100% @ 1/3C
14 Efficiency of Discharge 95% @1C
15 Max Charge Voltage 470.4V
16 Charge Current 1/2C, 60A
17 Max Charge Current 120A
18 Standard discharge Current 120A
19 Max Discharge Current 3C, 360A
20 Discharge Cut-off Voltage 313.6V
21 Charge Temperature 0 ℃ to 45℃(32℉ to 113℉) @ 65±20% Relative Humidity
22 Discharge Temperature -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity
23 Storage Temperature ≤ 1 Month, -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity
≤ 6 Month, -20℃ to 30℃(-4℉ to 80℉) @ 65±20%Relative Humidity

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.

1): Are you a manufacturer or a trader?

Re: We are an expert in lithium battery manufacturer. We have successfully provided all kinds of comprehensive lithium battery solutions to different counties for about 10 years.

2): What brand and chemistry of batteries do you use?

Re: We will use LifePo4 or NMC lithium battery cells for your solution. In order to guarantee the quality of performance. We normally use the cell or module from Tier 1 battery cell manufacturer in the world. For example, we will use the lithium battery cells from GOTION or EVE. GOTION is the lithium battery cell supplier of Volkswagen. EVE is the lithium battery cell supplier of Daimler.

3): Is there a discount available if I order large quantities?

Re: Yes, with more bulk size orders, prices will be cheaper.

4): Do you offer battery chargers?

Re: Yes, we do. Please mention a charger when sending an inquiry. Please be advised that our charger cost is not included in the price of the battery.

5): What is your company’s intelligence like?

Re: Our company has ISO9001 certification. Most of our products are UN38.3, IEC62133, and CB certified.

6): When will my order be shipped?

Re: Normally 30 days after payment is received, but it can be negotiated based on order quantity and production schedule.

7): What is the quality guarantee period?

Re: 3 years!

8): How much range can I expect from an Electric Car battery pack?

Re: Currently, electric vehicles have a range of more than 200km per charge. It also needs to consider the factors of battery system total energy, temperature, rolling resistance, acceleration etc.

9): Is the Electric Car battery system waterproof?

Re: Bonnen Battery offers custom IP65 and IP67 levels. The IP67 level can at least ensure that the battery pack is immersed in water at a depth of one meter. This will not cause problems for a certain period of time.
