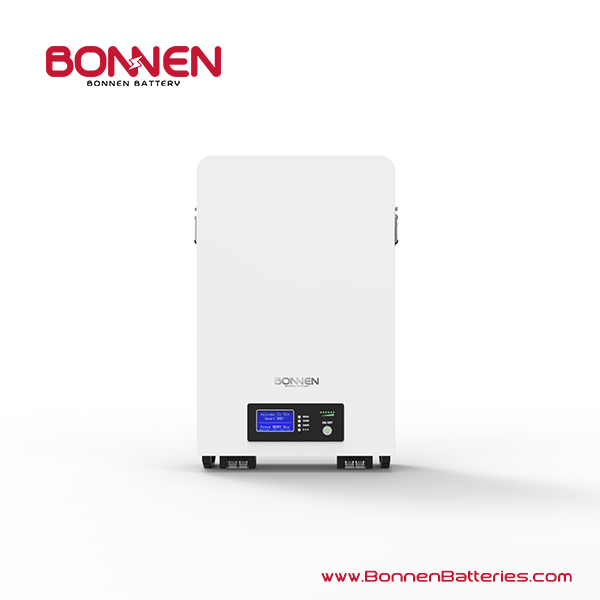

Home Energy Storage System, Wall-mounted 5KWH OEM/ODM
Bonnen Wall-mounted Home Energy Storage System is based on LIFEPO4 battery. It has been designed to provide battery backup for home appliances. It has modern design, excellent safety, long lifetime, very nice temperature performance, green power newly of excellent safety and high reliability.
| No. | Item Name | Basic parameter |
| Nominal characteristic | ||
| 1 | Nominal voltage[V] | 51.2V |
| 2 | Capacity [C/5][Ah] | 100Ah |
| 3 | Energy[ C/5][WH] | 5120 |
| 4 | Dimension | W390Ă—L590Ă—D152mm |
| 5 | Weight[kg] | 53 |
| Electric characteristic | ||
| 6 | Work Voltage Range[V] | 40~58.4V |
| 7 | Standard Charge Current | 50A |
| 8 | Max Charge Current | 100A |
| 9 | Max Discharge Current | 100A |
| Operating conditions | ||
| 10 | Lifetime @+25℃ | >10 years |
| 11 | Cycle life (0.5C charge ，0.5C discharge）80%DOD；±25℃ | ≥ 4000 |
| 12 | Operating temperature | Charge :0~45℃; |
| Discharge:-20~60℃; | ||
| 13 | Storage temperature | -10℃~45 |
| (<1months,20%~60%SOC); | ||
| -10℃~25 | ||
| (<3months,30%~60%SOC); | ||
| 14 | EMC standard compliance | EN 61000 chapter |
| 15 | Communication Mode | RS485/CAN |
Bonnen Home Energy Storage System can work with Victron/ Goodwe/ Growatt/ SMA/ MUST/ SOROTEC, etc inverters as follows.
Application
- Solar hybrid system
- Home energy storage system
Advantage
- More Than 10 Years Life Cycles
- A Safe And Reliable Battery Management System
- Easy Plug And Play
- Support Off-grid And On-grid Systems
- Wall-mounted Convenient Installation
- MODbus and CANbus Communication
- Advanced closed loop communication with most 48V inverters
Battery management System function
- Current detect at charging and discharging
- Hardware protection
- Discharge control
- Charge control
- Cell balance
- Cell voltage detect
- Temperature detect
- Communication(RS485/RS232)
- PACK voltage detect
- Fault alarm
Communication
- Communication interface(RS485/RS232)，battery operating state （current, voltage, temperature ）
Warnings
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to water
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
1): Are you a manufacturer or a trader?
Re: We are an expert in lithium battery manufacturer. We have successfully provided all kinds of comprehensive lithium battery solutions to different counties for about 10 years.
2): What brand and chemistry of batteries do you use?
Re: We will use LifePo4 or NMC lithium battery cells for your solution. In order to guarantee the quality of performance. We normally use the cell or module from Tier 1 battery cell manufacturer in the world. For example, we will use the lithium battery cells from GOTION or EVE. GOTION is the lithium battery cell supplier of Volkswagen. EVE is the lithium battery cell supplier of Daimler.
3): Is there a discount available if I order large quantities?
Re: Yes, with more bulk size orders, prices will be cheaper.
4): Do you offer battery chargers?
Re: Yes, we do. Please mention a charger when sending an inquiry. Please be advised that our charger cost is not included in the price of the battery.
5): What is your company’s intelligence like?
Re: Our company has ISO9001 certification. Most of our products are UN38.3, IEC62133, and CB certified.
6): When will my order be shipped?
Re: Normally 30 days after payment is received, but it can be negotiated based on order quantity and production schedule.
7): What is the quality guarantee period?
Re: 3 years!
8): Are the Lithium battery solutions waterproof?
Re: Bonnen Battery offers custom IP54, IP65 and IP67 levels. The IP67 level can at least ensure that the battery pack is immersed in water at a depth of one meter. This will not cause problems for a certain period of time.
