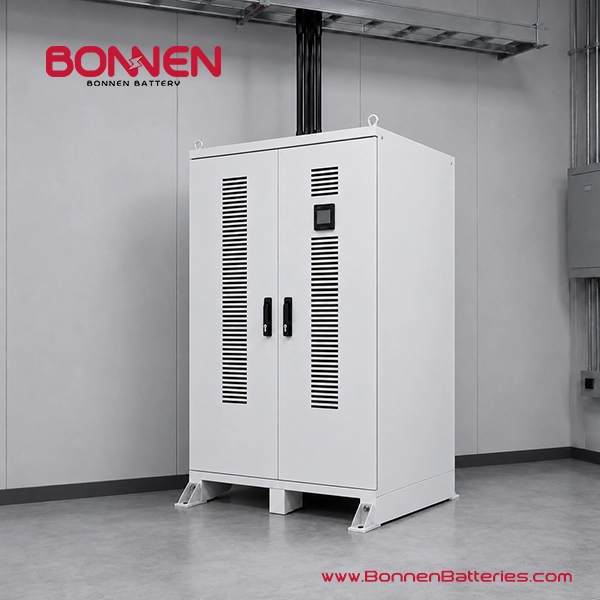

100kWh Commercial Battery Storage Cabinet & Industrial Battery Energy Storage Systems
Bonnen Battery’s 100kWh Commercial Battery Storage Cabinet is a high-voltage LFP battery energy storage system designed for commercial, industrial, and project-based energy storage needs. It can work as a standalone 100kWh battery cabinet or be connected in parallel with multiple cabinets to build larger industrial battery energy storage systems. With a 665.6V 150Ah battery cluster, 100kWh rated energy, LiFePO₄ cells, BMS protection, and a compact cabinet design, this system is built for engineers, EPCs, and project buyers who need a reliable, scalable, and customizable BESS solution.
Bonnen Battery is a lithium battery manufacturer focused on custom energy storage battery solutions. We support project design, battery pack customization, BMS matching, system integration, and OEM/ODM battery production for global C&I energy storage projects.
Free Custom Design
24/7 Engineer Support Services
Certification: Compliance with MSDS, UN38.3, CE, CB, IEC 62619, UL
Features of Bonnen C&I Battery Energy Storage System
–
| Item | Specification |
| Product Name | 100kWh Commercial Battery Storage Cabinet |
| Application | Commercial & Industrial Energy Storage |
| Battery Chemistry | LiFePO₄ / LFP |
| Rated Energy | 100kWh |
| Battery Cluster Rated Voltage | 665.6V |
| Battery Cluster Rated Capacity | 150Ah |
| System DC Voltage Range | 582.4V–748.8V |
| Battery Cell Voltage / Capacity | 3.2V / 150Ah |
| Cell Quantity | 208 cells |
| Battery Module Configuration | 1P26S |
| Battery Module Quantity | 8 modules |
| Single Module Rated Voltage | 83.2V |
| Single Module Rated Energy | 12.48kWh |
| Designed Charge Current | 75A |
| Designed Discharge Current | 75A |
| Designed Discharge Rate | 0.5C |
| Cycle Life | ≥6000 cycles |
| Energy Efficiency | ≥95% at rated C-rate |
| Cabinet Dimensions | 700 × 1200 × 1500 mm |
| Approx. Weight | 960 kg |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Humidity Range | 5%–85% |
| BMS Architecture | Module-level BMU + Rack-level MBMS |
| Communication | CAN communication support |
| Typical Use | Standalone cabinet or parallel BESS integration |
–
System Configuration
The 100kWh battery storage cabinet includes battery modules, battery cluster, high-voltage box, BMS, internal cables, and energy storage accessories.
The standard system configuration includes:
| System Part | Description |
| Battery Cells | 3.2V 150Ah LiFePO₄ cells |
| Battery Modules | 8 units of 1P26S battery modules |
| Battery Cluster | 665.6V 150Ah battery cluster |
| High-Voltage Box | Controls high-voltage circuit protection and power output |
| BMS | Monitors battery safety, SOC, SOH, voltage, current, and temperature |
| Cabinet | Industrial battery cabinet with rack-mounted module layout |
| Internal Cables | High-voltage cables, communication cables, grounding cables |
| Accessories | Project wiring and installation accessories |
–
A battery cabinet is the DC energy storage part of the BESS. In a full energy storage project, the cabinet is normally connected with PCS, EMS, fire protection, HVAC or thermal control, AC distribution, and the site control system.

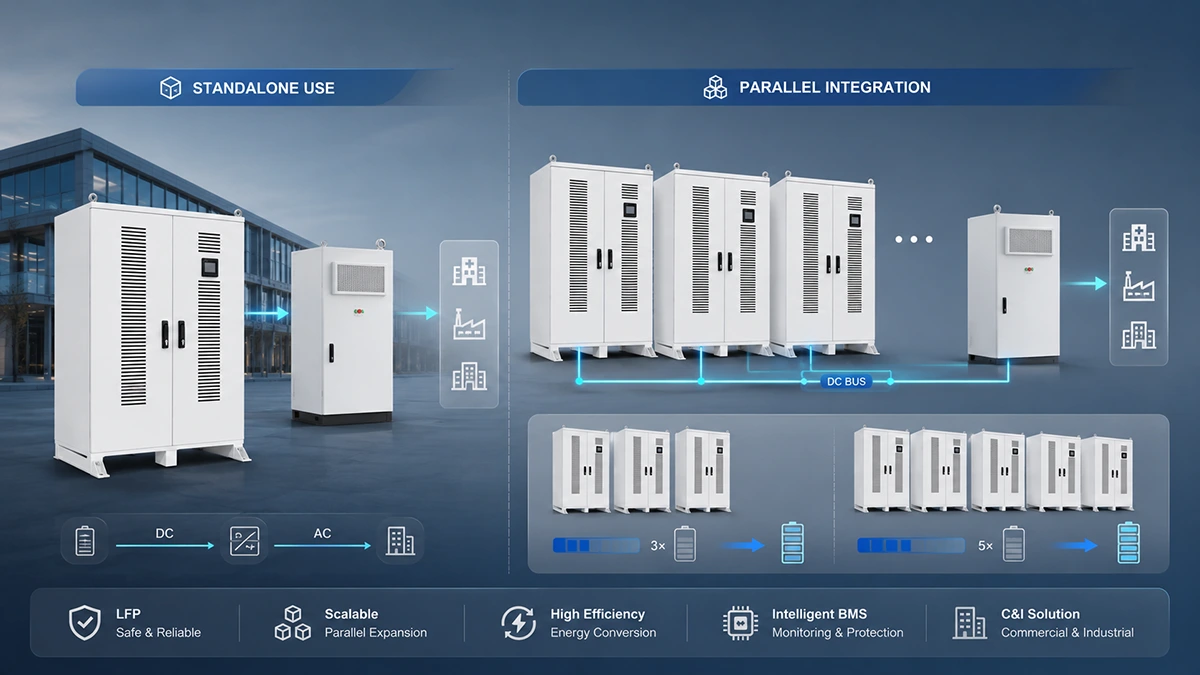

Standalone Use & Parallel Integration
This 100kWh cabinet can be used in two main ways.
Standalone Use
In standalone use, one 100kWh cabinet works as an independent battery energy storage unit. This is suitable for small C&I projects, backup power systems, solar storage sites, and equipment-level energy storage.
A standalone 100kWh battery cabinet is a good choice when the project needs simple installation, clear capacity, and easy maintenance.
Parallel Integration
For larger projects, multiple 100kWh cabinets can be connected in parallel. For example, 5 cabinets can form a 500kWh battery energy storage system, and 10 cabinets can form a 1MWh battery storage system.
Parallel battery cabinets help project teams scale capacity without redesigning the full battery system from zero.
For EPCs and system integrators, this makes project planning easier. For buyers, it makes future expansion more flexible.

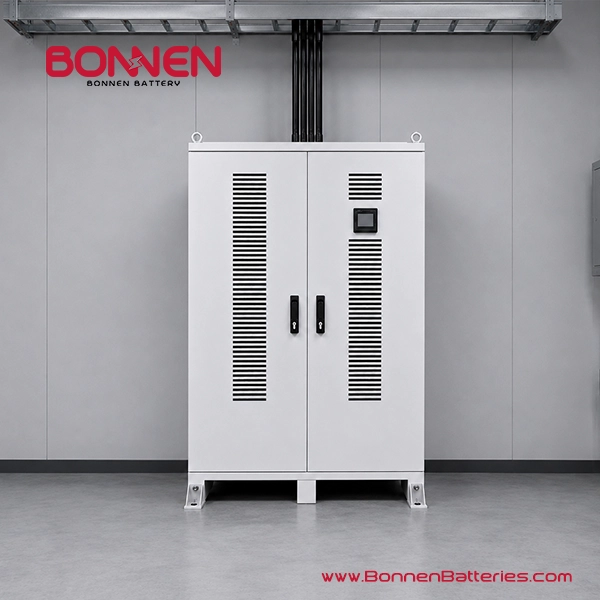

Battery Cabinet Structure
The battery cabinet is designed for safe installation, easy wiring, and convenient maintenance.
The cabinet uses a rack-mounted battery module layout. Battery modules and the high-voltage box are arranged inside the cabinet, with high-voltage and communication connections placed at the front for easier service access.
The structure is designed to support mechanical strength, electrical safety, thermal management, and maintenance needs.
Key structure points include:
| Structure Area | Purpose |
| Battery Module Rack | Holds 8 battery modules in a fixed cabinet layout |
| High-Voltage Box Area | Manages HV output, protection, and switching |
| Front Wiring Access | Makes installation and inspection easier |
| Internal Cable Routing | Separates high-voltage and low-voltage circuits |
| Cabinet Base | Supports fixed installation on the project site |
| Lifting Rings | Supports lifting and cabinet movement during installation |
| Ventilation Path | Helps heat exchange inside the cabinet |
| Safety Labels | Supports safer service and maintenance work |
–
A good battery cabinet design reduces installation risk and makes maintenance faster.
Clear 100kWh Building Block
Engineers can use each cabinet as a clear 100kWh DC battery unit. This makes capacity planning easier.
Easier System Scaling
Project teams can scale from 100kWh to hundreds of kWh or MWh by adding more cabinets in parallel.
Lower Integration Workload
The cabinet already includes battery modules, BMS, high-voltage box, and internal wiring. This helps reduce project integration time.
Better Safety Management
The BMS monitors voltage, current, temperature, SOC, SOH, and protection status. This gives engineers more control over system safety.
Strong Fit for C&I Projects
The 100kWh size is practical for factories, buildings, farms, EV charging stations, and microgrid projects.
Custom Battery Support
Bonnen Battery can adjust battery voltage, capacity, cabinet design, communication, connector type, cable design, and system matching based on project needs.
Better Procurement Clarity
Project buyers can source a complete battery cabinet instead of buying loose cells, modules, BMS, and cabinet parts from different suppliers.
Manufacturer-Level Technical Support
Bonnen Battery supports battery design review, technical documents, production, testing, and project communication before delivery.
The 100kWh Commercial Battery Storage Cabinet is suitable for many C&I energy storage projects.
| Application | How the Battery Cabinet Helps |
| Solar + Storage Projects | Stores solar power for later use |
| Factory Energy Storage | Reduces peak demand and supports stable power |
| Commercial Buildings | Provides backup power and load shifting |
| EV Charging Stations | Supports power buffering and demand control |
| Microgrids | Stores energy for local power systems |
| Farms and Rural Sites | Supports off-grid or weak-grid power needs |
| Industrial Parks | Helps manage energy use across multiple loads |
| Telecom and Utility Sites | Provides backup energy for critical equipment |
| Construction Sites | Supports temporary power and hybrid power systems |
| Remote Facilities | Reduces diesel generator runtime |
1. What is a 100kWh commercial battery storage cabinet?
A 100kWh commercial battery storage cabinet is a lithium battery system that stores 100kWh of electrical energy for commercial or industrial power use. It is commonly used in solar storage, backup power, peak shaving, and microgrid projects.
2. Is this product a battery cabinet or a full BESS?
This product is the battery cabinet part of a BESS. A full BESS usually also includes PCS, EMS, AC distribution, fire protection, site wiring, and project controls.
3. Can this 100kWh battery cabinet work alone?
Yes. One 100kWh cabinet can work as a standalone energy storage battery cabinet when it is matched with the correct PCS, inverter, EMS, and site electrical design.
4. Can I connect several 100kWh battery cabinets in parallel?
Yes. Multiple 100kWh battery cabinets can be connected in parallel for larger commercial and industrial battery energy storage systems.
5. How many 100kWh cabinets do I need for a 1MWh battery energy storage system?
A 1MWh battery energy storage system needs about 10 units of 100kWh battery cabinets, depending on the final system design and usable energy requirement.
6. What battery chemistry does this 100kWh cabinet use?
This 100kWh cabinet uses LiFePO₄ battery chemistry. LFP is widely used in energy storage because it has good safety, long cycle life, and stable performance.
7. What is the rated voltage of this industrial battery energy storage system?
The battery cluster rated voltage is 665.6V, and the DC voltage range is 582.4V to 748.8V.
8. What is the cycle life of this 100kWh LFP battery cabinet?
The battery system is designed for ≥6000 cycles under rated test conditions. Actual service life depends on temperature, depth of discharge, charge rate, discharge rate, and site operation.
9. Is this 100kWh commercial battery storage system suitable for solar projects?
Yes. This cabinet can be used in solar-plus-storage projects when matched with the right PCS, inverter, and EMS.
10. Can Bonnen Battery customize the voltage and capacity?
Yes. Bonnen Battery can support custom energy storage battery designs, including voltage, capacity, BMS protocol, cabinet size, cable interface, and project integration requirements.
11. Can this battery cabinet be used for peak shaving?
Yes. A 100kWh commercial battery storage cabinet can store energy during low-demand hours and discharge during peak-demand hours to help reduce peak power costs.
12. Can this system be used for EV charging stations?
Yes. This battery cabinet can support EV charging station energy storage by buffering grid power, storing solar energy, and reducing peak load pressure.
13. What is the main benefit of using a 100kWh battery cabinet instead of loose battery modules?
A battery cabinet is easier to install, safer to manage, and faster to integrate than loose battery modules. It already includes a cabinet structure, battery modules, BMS, HV box, and internal wiring.
14. What information should I provide before requesting a quote?
Please provide project voltage, required capacity, PCS or inverter model, communication protocol, indoor or outdoor installation, operating temperature, application type, and target delivery schedule.
15. Is this 100kWh battery cabinet suitable for industrial backup power?
Yes. It can be used for industrial backup power when the system is correctly matched with the site load, PCS, switchgear, and control system.
16. Can this cabinet be used in a microgrid?
Yes. The cabinet can be used in a microgrid to store solar, wind, generator, or grid energy and release power when needed.
17. What is the difference between commercial battery storage and industrial battery energy storage?
Commercial battery storage usually supports buildings, shops, charging stations, and small business sites. Industrial battery energy storage usually supports factories, heavy loads, industrial parks, and larger project systems.
18. Does Bonnen Battery provide OEM or ODM support?
Yes. Bonnen Battery provides OEM and ODM support for energy storage lithium battery projects, including battery pack design, BMS matching, cabinet design, and project-based customization.
19. Is this 100kWh battery cabinet easy to maintain?
Yes. The rack-mounted module design, front-side wiring access, and BMS monitoring make service and inspection more convenient for trained technicians.
20. Why should project buyers choose Bonnen Battery?
Project buyers choose Bonnen Battery because we are a lithium battery manufacturer that can support standard battery cabinets and custom battery solutions for different C&I energy storage projects.
