Project Description

  • Energy Storage System 48V 200AH
  • Energy Storage System 48V 200AH

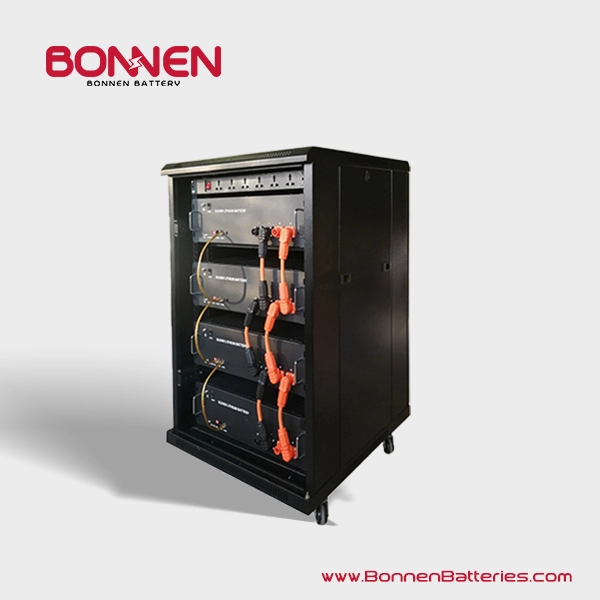

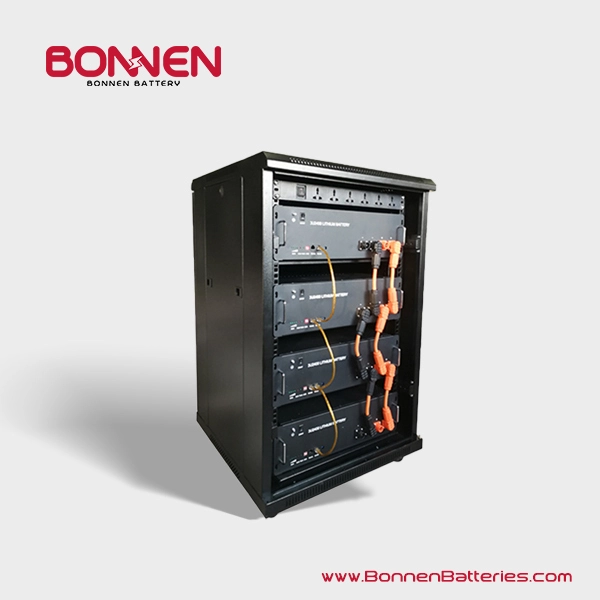

Energy Storage System 48V 200AH LIFEPO4 Custom Battery Pack

  • Household energy storage battery 48V 200Ah LiFePO4 battery pack telecommunication base

  • This battery system is widely used for database, telecommunication, and energy backup project, energy storage system.

  • Land Area Saving: 50%

  • Installation Efficiency Increase: 40%

  • Energy Consumption Saving: 30%

  • Annual Availability: 98%

  • Life Increase: 33%

  • Transportation Cost Saving: 30%

Request A Quik Quote

4 units of 48V 50Ah lithium battery are connected in parallel

No. Item Name Basic parameter
2 Charging voltage 48V
3 Max voltage 54.75V
4 Mini Voltage 37.5V
5 Nominal capacity 50Ah
6 Nominal energy 2.4Kwh
7 Standard charging current CC-CV mode
25A
Cut-off current 1.25A
8 Standard discharging current CC mode
50A
9 Max discharge watt 2.4KW
11 Weight 25kgs
12 Temperature range -10~55℃
13 Communication mode 485/CAN Bus
14 Cycle lifetime 80% DOD, 3500 times
15 Size(W*H*D:mm) 3U
440*140*280

Household energy storage battery 48V 200Ah LiFePO4 battery pack telecommunication base

Application: This battery system is widely used for home, database, telecommunication, and energy backup project, energy storage system.

Benefits
•Land Area Saving: 50%
•Installation Efficiency Increase: 40%
•Energy Consumption Saving: 30%
•Annual Availability: 98%
•Life Increase: 33% (10,000 Cycle Performance)
•Transportation Cost Saving: 30%

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
