Waterproof And Sealing Test Methods For Commercial And Industrial Energy Storage Battery Pack

In short, thorough waterproof (leak) testing ⇱ is a must for energy storage battery packs. Any tiny crack or bad seal can let water or moisture in, creating short circuits, corrosion, or even dangerous thermal runaway and fires. Water and electricity are a deadly combo, so the pack must be completely air- and water-tight before it leaves the factory. In this article we explain why these tests are critical, how they’re done (pressure decay tests, etc.), and what they mean. At Bonnen Battery, we design every lithium battery pack with these safety checks in mind to ensure long life and reliability.

Why Waterproof Testing Matters

Water intrusion is one of the biggest enemies of lithium batteries. Wet or humid conditions can cause short circuits, corrosion, or thermal runaway in a pack. For example, water contacting lithium components produces hydrogen gas (which is highly flammable) and lithium hydroxide. Even a small leak can trigger a reaction that could lead to fire or explosion. In other words, water plus a Li-ion battery is a recipe for disaster, so testing for leaks is essential safety work.

Water damage also ruins performance. Any moisture inside the pack corrodes metal parts (BMS boards, sensors, connectors) and raises internal resistance. Over time, this causes self-discharge, capacity loss, and can trigger error signals or system shutdowns. Rusting screws or bus bars weaken the pack’s structure and increase heat buildup. Worse, leaked coolant or electrolyte may short a terminal or safety valve and burn out circuits. In short, poor sealing not only risks fires but also kills the battery’s life and reliability.

Common Leak Paths and Test Points

Battery packs have a few obvious weak spots that must be sealed and tested:

• Cover seams and seals: The joint between the top cover and bottom tray is sealed with adhesive or gaskets. Cracks here can let rain or humidity seep in and contaminate cells.

• High-voltage (HV) connectors: Plugs and harnesses (for output cables, data lines, etc.) go through the case. During testing we block these with special plugs or caps to isolate the pack.

• Cooling plumbing (liquid-cooled packs only): A liquid-cooled pack has coolant tubes or plates. These must be leak-tight too – a glycol leak inside the pack can cause short circuits or fire.

• Breather or vent holes: Some packs have a pressure-relief valve or breather port. These holes are usually fitted with filters. For the test, a small plug or the actual valve is used as the fill point for the pressurized gas.

Because battery packs are large but relatively thin-walled, they can deform when pressurized. It’s a challenge: the pack can “balloon” like a balloon when you pump air in. That extra movement can change the apparent leak rate. Likewise, sucking a vacuum on the pack can make it shrink slightly and hide leaks. Test engineers have to decide whether to pressurize (positive pressure) or evacuate (negative pressure) the pack based on its design.

Key Test Requirements: Pressure Drop and Leak Rate

In a pressure-based leak test, we measure how much the internal pressure changes over time after we isolate the pack. Two main indicators are used:

• Pressure drop (ΔP): This is simply how much the pressure inside the pack falls from start to finish of the test (often in mbar or psi). A drop means gas is escaping somewhere.

• Leak rate: This is the volume of gas leaked per unit time (usually cc/min or sccm). It’s calculated from the pressure drop using the ideal gas law. Roughly speaking:

​

where V is the internal volume of the pack, ΔP is the pressure change ⇱ over the test time t, and Patm is atmospheric pressure. (See the FAQ below for more on this formula.)

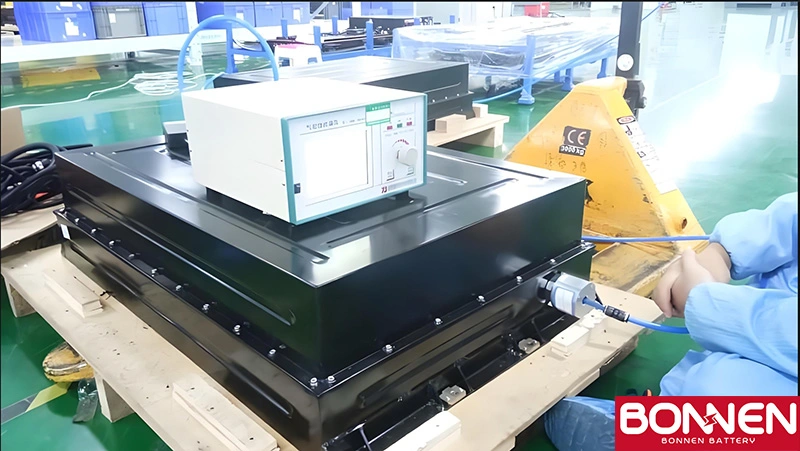

To do the test, we usually use dry air or nitrogen. We connect a test machine to the pack, fill it to a set pressure, then close off the valve. The machine tracks the pressure over time. If the pressure stays steady (tiny drop), the pack passes; if it falls too quickly, we know there’s a leak. In practice, we select a target pressure and define a reject limit (for example, X psi drop in 10 seconds), based on prior experience and calculations.

Many industries use positive pressure testing for battery packs, but some situations call for negative pressure (vacuum) tests. With positive pressure, we gently inflate the pack and watch for leaks. With negative pressure, we suck the pack down below atmospheric and see if it sucks in air. Both methods rely on the same principle: if there’s a leak, the internal pressure ⇱ will change once the pack is isolated. A good leak-test machine automatically stops any heat or gas injection after filling and just measures the pressure change (ΔP) over a set “dwell” time.

Testing Methods and Process

The typical leak test follows four stages. For simplicity, assume we use positive pressure (we air-up the pack). A convenient way to see this is in the table below:

–

During Inflation, the test system opens valves to feed air into the pack. The internal pressure rises until it hits the set point. In Stabilization, the valves close and the system lets any thermal or pressure transients settle out. In the Measurement phase, we monitor how fast the pressure falls (this is our ΔP over time). If this drop (or the calculated leak rate) exceeds the allowed limit, the pack fails the test. Finally, Exhaust just means we safely vent the pack and prepare to start again on the next unit.

Every leak test setup needs a calibration for volume. The machine must “know” the pack’s internal volume (plus any fixture volume) to convert a pressure change into a leak rate. In practice, calibration often involves injecting a known tiny leak or using a predefined standard, then adjusting the math so that, for example, a 0.017 psi drop over 10 s corresponds to 0.5 cc/min of leak.

Bonnen Battery follows these same industrial practices on our assembly line. We use custom fixtures with plugs for the HV connectors and only expose one small vent hole to the test line. Once the pack is clamped in, we charge it with air or N₂ to the test pressure, wait a few seconds, and then monitor the pressure decay for the chosen interval. Our test machines automatically calculate the leak rate based on the measured ΔP, pack volume and time, using the ideal gas formula. Any pack that fails this check is identified and reworked before shipment.

Calculating Leak Rates

A quick note on the math: From the ideal gas law, one can show that for small leaks under constant temperature conditions,

Rearranging gives the formula used in testing. For example, if a pack of volume 10 L loses 1 psi (≈69 mbar) over 10 seconds at sea level (Patm≈1013 mbar), the leak rate is about

which is about 4080 cc/min (a clearly bad leak!). By comparison, good battery packs have leaks orders of magnitude smaller (often a few cc/min or less). Our test equipment automatically does these calculations, so operators see a simple “Pass/Fail” result on screen.

FAQs

Q: Why is waterproof testing mandatory for energy storage packs?

A: Because water entry can immediately ruin a battery pack or make it unsafe. Batteries are designed to be sealed to protect against moisture. Even tiny leaks allow corrosion, shorts, or chemical reactions that can cause fires. Regulations for industrial and commercial batteries usually require IP-rated (waterproof) performance, so testing is a non-negotiable quality check.

Q: What’s the difference between positive and negative pressure testing?

A: Positive pressure means pumping air into the pack, then watching if any escapes. Negative pressure means sucking air out of the pack (creating a partial vacuum) and seeing if air leaks in. Positive-pressure tests are more common, but both work on the same principle. Note that inflating a large pack can slightly expand it (like a balloon), while pulling a vacuum can make it shrink. Test engineers choose the method that gives the most reliable result for the specific pack.

Q: How do pressure-drop and leak-rate relate?

A: Pressure-drop (ΔP) is the raw measurement (how much psi or mbar fell). Leak rate converts that drop into a flow rate (usually cc/min) using the pack’s volume. The basic formula is Leak Rate ≈ (Pack Volume × ΔP) / (Patm × Time). In practice, test systems do the math for you and display the leak rate directly. If that rate is below the allowed limit, the pack “Passes” the test.

Q: Are there standards for how tight the seals must be?

A: Yes, industry and customer specs usually set allowable leak rates or pressure-decay limits. For example, an IP67 rating ⇱ means the sealed pack must survive 1 m of water immersion for 30 minutes. Liquid-cooled battery systems can be even more critical: the coolant circuit usually runs at several bar pressure during use, so its seals must be extra-tight to prevent any fluid loss. In practice, pack designers often do submersion or bubble tests early on to decide what leak rate ⇱ is acceptable, and then apply that limit on the production line.

Q: What about the coolant lines in a liquid-cooled pack?

A: Those get tested too. Often they are isolated and tested separately (or included in the same air test if possible). Since glycol leaks can short-out cells, the coolant plumbing is usually pressurized (to a few bar) and checked for leaks. If any seepage is found, the line or fitting is fixed. Some high-end labs even inject tracer gas in the coolant loop and sniff for it, to catch extremely small leaks before the pack is assembled.

Q: How can I be sure my battery supplier takes leak testing seriously?

A: Ask about their testing procedures. A good supplier (like Bonnen Battery) will show you data on pressure-decay tests, describe their fixtures, and often hold QC audit records. They should be able to quote a maximum leak rate spec (e.g. “<0.5 cc/min at 2 psi”) and prove their equipment is calibrated. Also check if their packs carry relevant IP or safety certifications, which usually imply waterproof testing.

Q: Who should care about this information?

A: Engineers, battery pack designers, and procurement managers in commercial or industrial energy storage projects. If you’re deploying large Li-ion battery systems (e.g. for backup power, solar farms, EV charging stations, etc.), understanding and requiring proper waterproof tests will ensure the systems are safe and durable.

Q: Why Bonnen Battery?

A: Bonnen Battery is an international manufacturer of high-quality lithium batteries and packs. We treat waterproof and leak testing as standard practice. Every pack we build is designed for outdoor/commercial use with proper sealing (IP65/67 or better as needed) and is 100% leak-tested on our production line. Our goal is that your batteries work safely for years, even in harsh environments.

By following these test methods and standards, battery makers can catch leaks before they become big problems. Remember, a battery pack only needs one bad seal to end up underwater (literally) in a salt spray or rainstorm – so it must pass waterproof testing. At Bonnen Battery, we make sure each pack is built and tested right, giving you confidence in the performance and safety of our energy storage batteries.
