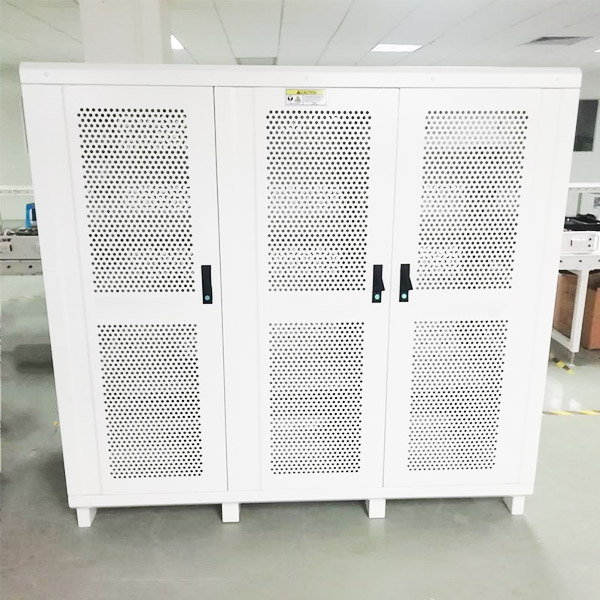

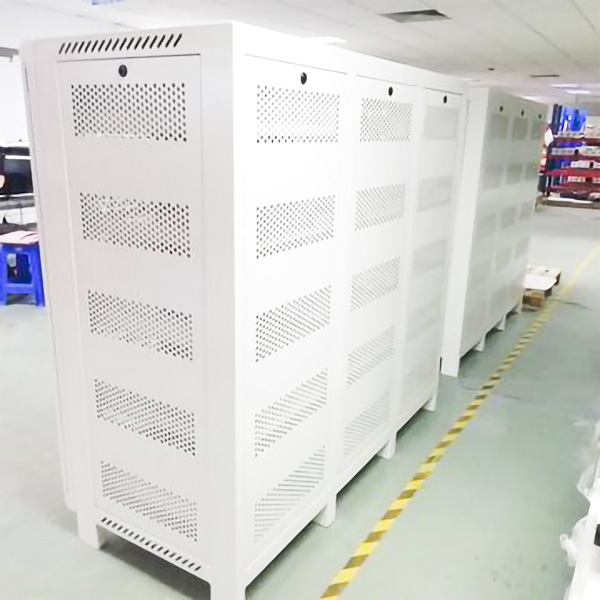

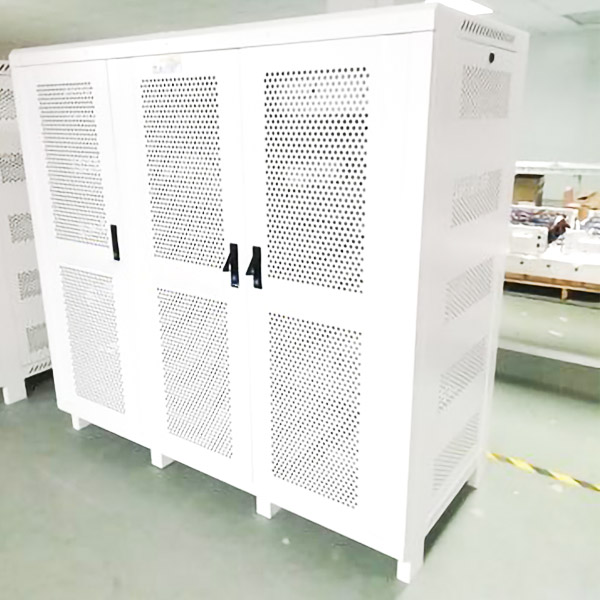

Energy Storage System 122KWH LIFEPO4 Custom Battery Pack

  • High voltage 409.6V300Ah LiFePO4 energy storage battery ESS battery solar batteries

  • This battery system is widely used for database, telecommunication, and energy backup project, energy storage system.

  • Land Area Saving: 50%

  • Installation Efficiency Increase: 40%

  • Energy Consumption Saving: 30%

  • Annual Availability: 98%

  • Life Increase: 33%

  • Transportation Cost Saving: 30%

Request A Quik Quote
      Parameters of 409.6V 300Ah battery system
No. Item Name Basic parameter Remark
1 Storage energy 122Kwh
2 Nominal capacity 300Ah
3 Nominal voltage 409.6V
4 Working voltage range 320V~467.2V
5 Nominal charging current 0.33C
6 Max continuous charging current 0.5C
7 Nominal discharging current 0.33C
8 Max continuous discharging current 0.5C
9 Comminication interface Canbus/RS485
10 Dimension(mm) 700*1596*1650 L*W*H
11 Weight -10~55℃
12 Color White/Black

                                            Parameters of 51.2V 100Ah (16S2P)

No. Item Name Basic parameter Remark
1 Storage energy 5.12kwh
2 Nominal capacity 100Ah
3 Nominal voltage 51.2V
4 Charging voltage 58.4V
5 Nominal charging current 0.5C 0℃~50℃
6 Max continuous charging current 1C 20~50℃
7 Nominal discharging current 0.5C -20℃~55℃
8 Max continuous discharging current 1C -20℃~55℃
9 Dimension 442*130*655 W*H*L
10 Weight about 52kgs
11 Color Wbite/Black

Key Specifications/Special Features:

High voltage 409.6V300Ah LiFePO4 energy storage battery ESS battery solar batteries
Application:
This battery system is widely used for database, telecommunication, and energy backup project, energy storage system.

Benefits
•Land Area Saving: 50%
•Installation Efficiency Increase: 40%
•Energy Consumption Saving: 30%
•Annual Availability: 98%
•Life Increase: 33%
•Transportation Cost Saving: 30%

442*130*655 W*H*L

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
