| No. | Item Name | Basic parameter |
| 1 | Battery System Rated Voltage | 372V |
| 2 | System working voltage range | 326.4V~428.4V |
| 3 | Battery system whole energy(KWh) | 74.4KWH |
| 4 | Battery system whole capacity（Ah） | 200AH |
| 5 | Battery standard charging current(23±2℃) | 50A |
| 6 | Battery Max charging current(23±2℃) | 100A |
| 7 | Battery standard discharging current(23±2℃) | 200A |
| 8 | Battery continuous discharging current(23±2℃) | 220A 30min |
| 9 | Battery discharge peak current(5s)(23±2℃) | 460A 30s |
| 10 | Case material | Stainless steel |

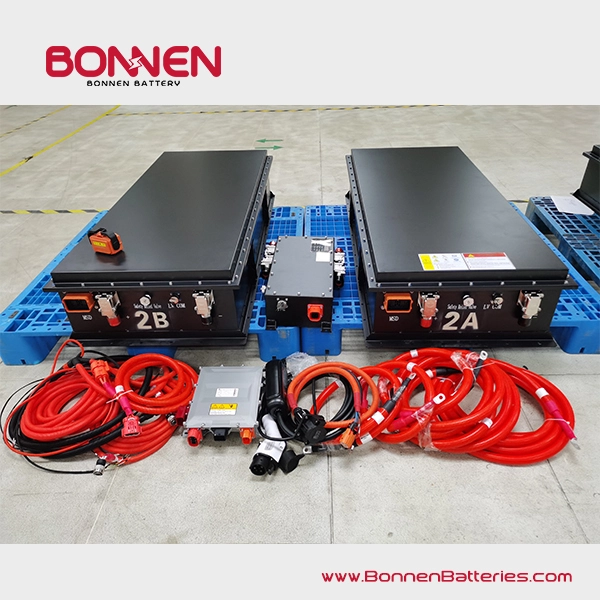

| 11 | Battery system configuration | PDU+2pcs battery box |

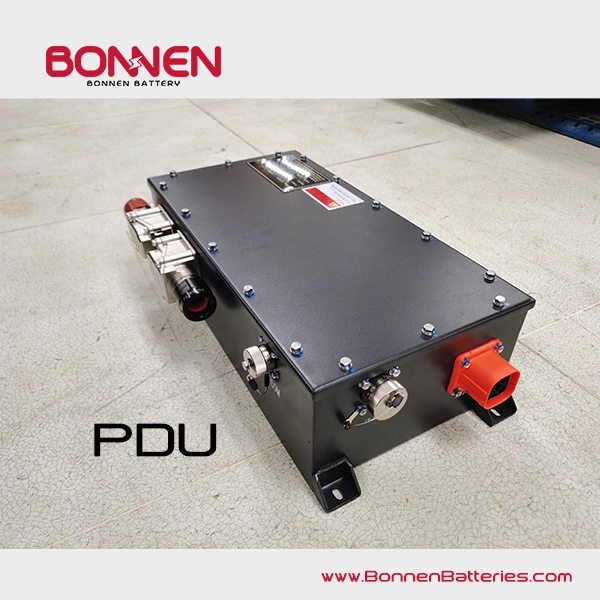

| 12 | PDU Size | 400*230*129.5mm |
| 13 | Single battery box dimension | 1350*600*260mm |
| 14 | Single battery box weight | 258KGS |
| 15 | Battery system Total weight | 550KGS |
| 16 | Battery system IP Grade | IP67 |
| 17 | Cooling system | Nature Cooling |
| 18 | Battery system working temperature |  -20~55℃ |
Bonnen provides a revolutionary solution for the EVs industry with powerful, top-of-the-line batteries that promise safety, reliability and sustainability. Our turnkey system includes energy management systems (BMS), DC-DC components, onboard chargers (OBC) plus Power Distribution Unit (PDU). This superior battery power ensures mass production without compromising zero emission results – providing an unbeatable performance.
| Battery system configuration | PDU+2pcs battery box |
| PDU Size | 400*230*129.5mm |
| Single battery box dimension | 1350*600*260mm |
Warnings
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
