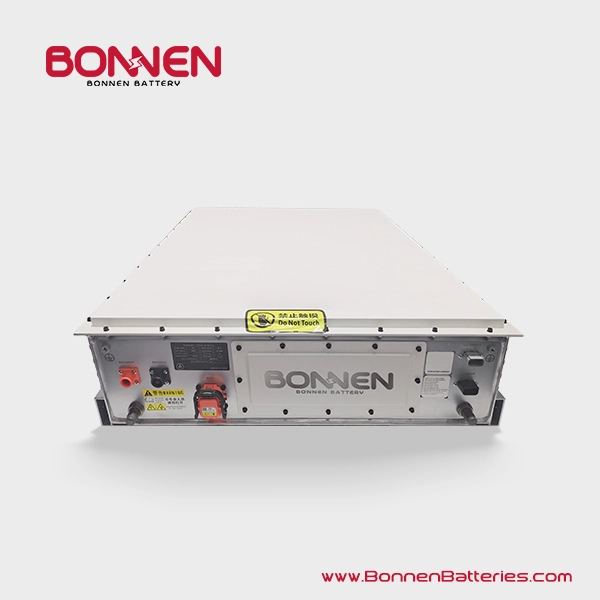

Custom High Voltage Lithium Battery for Aircraft GPU
Bonnen Custom High Voltage Lithium Battery, meticulously designed to empower your Ground Power Unit (GPU) with unmatched efficiency, reliability, and performance. Tailored to meet the unique demands of GPU manufacturers like you, this battery is poised to revolutionize your equipment’s power capabilities.
| No. | Item | Basic parameter |
| 1 | Chemistry | LFP (LiFePo4) |
| 2 | Cooling system | Natural cooling, Liquid cooling (option) |
| 3 | Configuration | 1P155S |
| 4 | Rated Capacity（Ah） | 304Ah |
| 5 | Rated voltage（V） | 496V |
| 6 | Working voltage range（V） | 387.5~565.75 |
| 7 | Total Energy(kWh） | 150kWh |
| 8 | Supported Continuously Discharging | 300A |
| 9 | Supported Max Continuously Charging | 250A |
| 10 | Pulse Discharge Current | 600A (30 seconds) |
| 11 | Storage Temp. (Three month) | -20°C~45°C |
| 12 | Storage Temp. (1 Year) | 0°C~35°C |
| 13 | IP Grade | IP67 |
| Item | Main parameters | |
| working temperature | -40℃~85℃ | |
| Storage temperature | -40℃~105℃ | |
| Working humidity | 5~95% | |
| High voltage detection accuracy | ±0.5% | |
| Current detection accuracy | ±0.5%FSR | |
| Insulation detection accuracy | 5K or 5% | |
| SOC estimation accuracy | ≤5% | |
| Charging temperature accuracy | ±1℃ | |
| Support protocols and standards | CCP、UDS、OBD-i、GB/T32960 | |
| System power supply | Voltage range:6~36V (typical value:12V,24V) | |
| Power consumption | Working | 200mA@12V |
| Sleep standby | 3mA@12V | |
| Power off | 100uA@12V | |
| Comm.unit | CAN BUS | 3 channel (charging whole vehicle master-slave) |
| 4G Comm. | Support | |
| Acquisition units | High voltage detection | 0~800V |
| Hall Current Sensor | Support(single dual range,500A range optional) | |
| Shunt | Support(+500A range optional) | |
| Insulation detection | Support (battery pack B +/B-,range 0-6m Ω） | |
● High precision analogue signal acquisition and filtering;
● Industry leading SoC/SOP/SOH core algorithm and calibration strategy;
● Multiple interface protection and high voltage safety protection technology;
● EMC design requirements and implementation are far higher than the national standards;
● AUTOSAR software architecture, UDS CCP OBD-lI and Misra C code specification;
● Highly integrated insulation detection, high voltage detection, charging port temperature detection, electronic lock drive, high voltage interlock, data storage, wireless data transmission and other rich functions, supplemented by dozens of hardware self-test circuits, providing the richest interface definition in the industry;
● CAN network communication and UDS service based on ISO14229 standard,software architecture design conforming to AUTOSAR specification and strict Misra C code specification to ensure software safety;
● System level reliability design, IPD R&D process management, CNAs laboratory supporting support, ISO/TS16949 quality management system to ensure product quality;
Warnings
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to water
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
