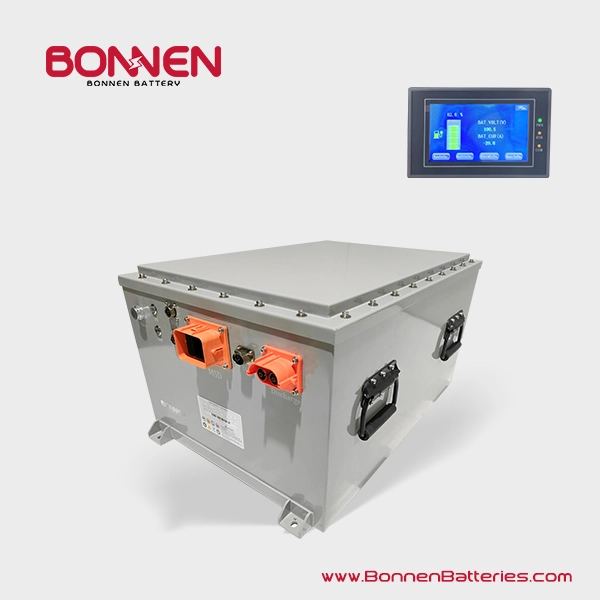

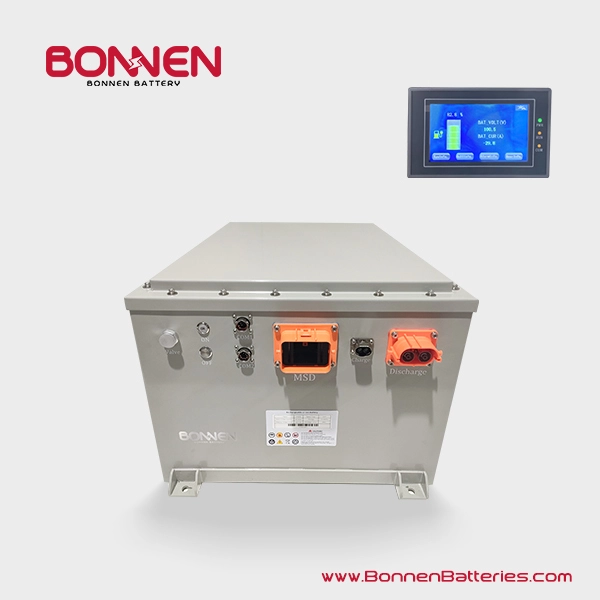

96V 105Ah Lithium Ion Marine Battery For Outboard Motors, Inboard Motors, E-boats, Tender, Yacht
Discover excellence with Bonnen’s Lithium Ion Marine Battery—the pinnacle of performance and reliability for your electric marine projects. Our battery, meticulously crafted and engineered, is designed to electric boats, tenders, yachts, and outboard/inboard motors to new levels of quality.
Free Custom Design
24/7 Engineer Support Services
Certification: Compliance with MSDS, UN38.3, CE, CB, IEC 62619, UL
Product Details
Voltage: 96V
Capacity: 105A
Total Energy: 10KWH
Battery Chemistry: Lifepo4 Battery
Application: Outboard Motors, Electric Boats, Tender, Yacht
BMS: Smart BMS+relay
IP Rating: IP67
Material Of Battery Case: AL
Cycle Life: ≥4000 Times
Communication Protocols: CAN (Optional)
Display: With Smart Remote LCD
Cooling System: Air Cool
Cell Balancing: Yes
Safety Features: Built-in BMS, Overcharge Protection, Short Circuit Protection, Over Discharge Protection
Payment & Shipping Terms
Minimum Order Quantity: 2 units
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: T/T, L/C, ACH, Fedwire Payment, SEPA Credit Transfer, Electronic Fund Transfer
Supply Ability: 5000 units /month
Product Features
| No. | Item Name | Basic parameter |
| 1 | Voltage | 96V |
| 2 | Battery Chemistry | LIFEPO4 |
| 3 | Battery System Whole Energy (KWH) | Rated：10.08kWh |
| 4 | Battery System Whole Capacity(Ah) | Rated：105Ah |
| 5 | Battery system Working Temperature | Discharge -20~55℃，Charge -0~55℃ |
| 6 | Battery system Surrounding environment relative humidity | 5%~95% |
| 7 | Battery system storage Temperature | -20～25℃(3-6 Month，50%SOC) |
| -20～45℃(1-3 Month，50%SOC) | ||
| -20～60℃(≤1 Month，50%SOC) | ||
| 8 | Battery system Max. charging current | 100A |
| 9 | Battery system Max. Instance discharging current（10s） | 300A |
| 10 | Battery system standard discharging current | 100A |
| 12 | Insulation Resistance Testing( Ω） (Main positive&Main Negative VS Battery case | ≥20MΩ |
| 13 | Cooling system | Air Cool |
| 14 | IP grade | IP67 |
| 15 | Battery case material | Aluminium alloy with corrosion-resistant coating |
| 16 | Display | With Smart remote LCD |
Can be customized
Warnings
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to water
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
