  • Lithium Ion Golf Cart Batteries 72V 100AH
  • Lithium Ion Golf Cart Batteries 72V 100AH

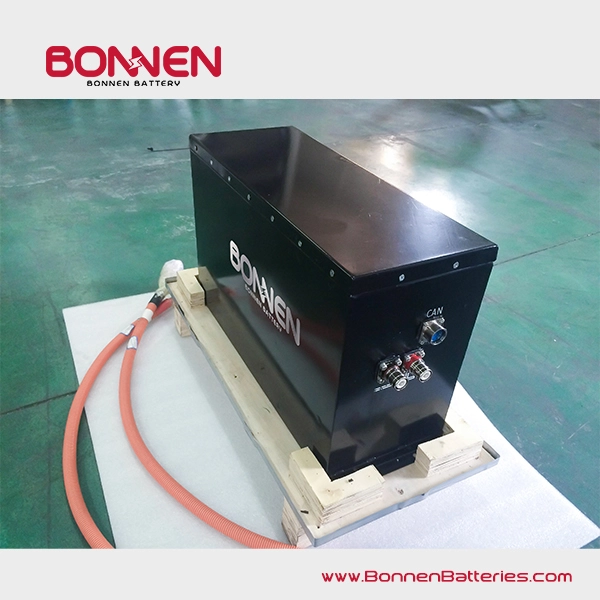

72V 100AH Lithium Ion Battery for E-mobility/ Electric Vehicle/ Golf Cart

Bonnen Battery EV Batteries use a much higher quality lithium compared to competitors. Our engineers have design and tested a complete battery system that replaces outdated lead acid batteries. Easy installation and the batteries require ZERO Maintenance. There is no need for multiple chargers and lengthy installation. Complete systems drop into the same location of the original battery system.

  • More than 6 years life cycles

  • Lighter weight & better performance

  • No more water to add

  • No more acid on your garage floor

  • No more corrosion

  • No more maintenance

Requst A Quik Quote
ProjectParameter
Voltage Range60V—84V(72VRated)
Battery System Whole Energy (KWH)Rated:7.2kWh
Battery System Whole Capacity(Ah)Rated:100Ah
Battery system Working Temperature (℃)Discharge -20~55℃,Charge -10~55℃
Battery system Surrounding environment relative humidity5%~95%
Battery system storage Temperature-20~25℃(3-6 Month,50%SOC)

-20~45℃(1-3 Month,50%SOC)

-20~60℃(≤1 Month,50%SOC)

Battery system Max. charging current100A
Battery system Max. Instance  discharging current               (10s)300A
Battery system standard discharging current100A
Battery system instant discharging current (Max.)      (30s)250A
Battery system Max. Continuous discharging current          (30min)100A
Insulation Resistance Testing( Ω)  (Main positive&Main Negative VS Battery case≥20MΩ
Battery system on Vehicle Waterproofing classIP67
Cooling systemAir Cool
  • Low internal resistance
    Methods of reducing the internal resistance:
    **Using carbon coated aluminum foil
    **Multiple electrode tab design
    **Increasing the width of electrode tab
    **Coating PVDF on battery separator
    **Pore-creating artificially
  • Long lifespan
    Usable for more than 2,000 charge-discharge cycles
    > 4 times than lead acid battery
  • Excellent performance in high and low temprature
    Usable in extremely cold and hot environments (-20 to 60 ºC)
  • Finished Packs

Accept customization, From 3.2V to 144V ,  From 10Ah to 200ah

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
