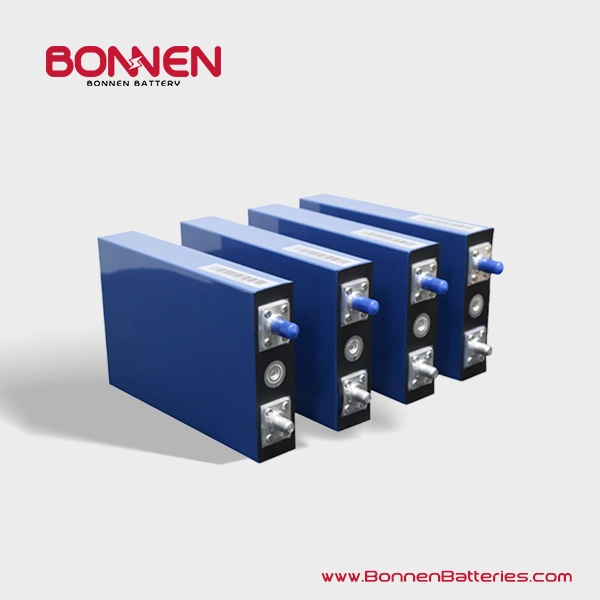

Automotive Prismatic LiFePo4 Battery Cell, 4C High Discharge Rate Lithium Ion Battery Cell, High Drain EV Battery Cell 3.2V 100Ah
BASIC PERFORMANCE
| Rated Voltage | 3.2V | 　 |
| Rated Capacity | 100Ah | 　 |
| Work Voltage Range | 2.5V~3.65V | 　 |
| Max continous charge rate | 1.2C | 　 |
| Max continous Discharge rate | 4C | 　 |
| Charge Temp. Range | 0~65℃ | 　 |
| Discharge Temp. Range | -20~65℃ | 　 |
| Dimension | 36*130*230 | T*W*H |
| DC IR | ≤1mΩ | SOC50%, 400A 10Sdischarge,25℃ |
| AC IR | ≤0.6mΩ | SOC40%，AC 1kHz, 25℃ |
| Weight | 2.3±0.05 kg | 　 |
| Cycle Life | ≥3000cycles | 　 |
â–
CHARGING PERFORMANCE
| Standard charging | 0.5C | Room temperature, CC to CV, cut-off current 0.05C, cut- off voltage 3.65V |
| Fast charging | 1.2C for continuous | Room temperature, SOC≤80% |
| 3C for pulse charging | ||
| ≥85% initial capacity | Room temperature | |
| Charging cut-off voltage | 3.65V | 25±2℃, ≤1C |
| Maximum safe temperature | 65℃ | 　 |
â–

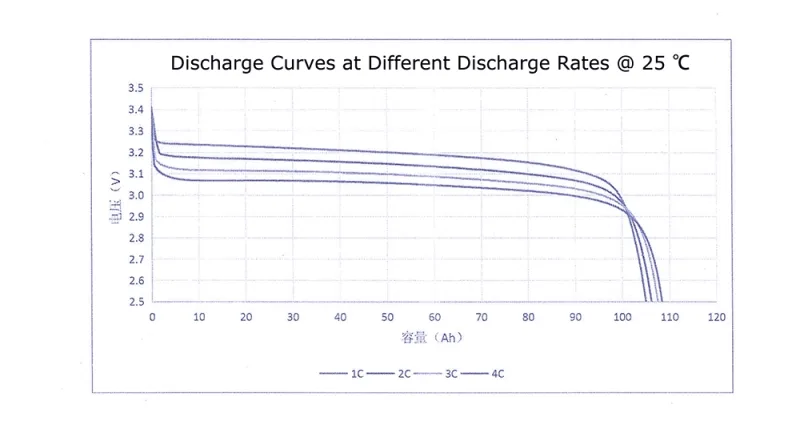

DISCHARGING PERFORMANCE
| Standard discharging capacity | ≥100% rated capacity | Room temperature, 1C, cut-off voltage 2.5V |
| High rate discharging | 4C for continuous | Room temperature |
| 5C for pulse discharging | ||
| ≥90% rated capacity | ||
| Low temperature discharging capacity | ≥70% initial capacity | -20℃, 1C, cut-off voltage 2.0V |
| ≥80% initial capacity | -10℃, 1C, cut-off voltage 2.0V | |
| High temperature discharging capacity | ≥98% initial capacity | 45℃, 1C, cut-off voltage 2.5V |
| ≥95% initial capacity | 55℃, 1C, cut-off voltage 2.5V |
â–
â–
CYCLE LIFE
| Standard cycle life | ≥3000 cycles | Room temperature, 0.5C charging, 1C discharging |
| High-temperature cycle life | ≥1500 cycles | 45℃, 0.5C charging, 1C discharging |
| ≥800 cycles | 55℃, 1C charging and discharging |
â–
CAPACITY RETENTION AND RECOVERY PERFORMANCE
| Storage temperature range | 10~35℃ | 　 |
| Room temperature capacity retention rate | ≥95% | Room temperature, 28 days |
| Room temperature capacity recovery rate | ≥97% | |
| High temperature capacity retention rate | ≥95% | 55℃, 7 days |
| High temperature capacity recovery rate | ≥96% |
â–
STORAGE PERFORMANCE
| Discharging capacity recovery rate | ≥97% | 45℃, 50% SOC, 28 days |
â–
SAFETY PERFORMANCE
| Over discharging | No fire, No explosion | |
| Over charging | No fire, No explosion | |
| External short-circuit | No fire, No explosion | |
| Heating | No fire, No explosion, No leakage | |
| Temperature cycling | No fire, No explosion | |
| Extrusion test | No fire, No explosion | |
| Drop | No fire, No explosion | |
| Seawater immersion | No fire, No explosion | |
| low-pressure | No fire, No explosion, No leakage | |
â–

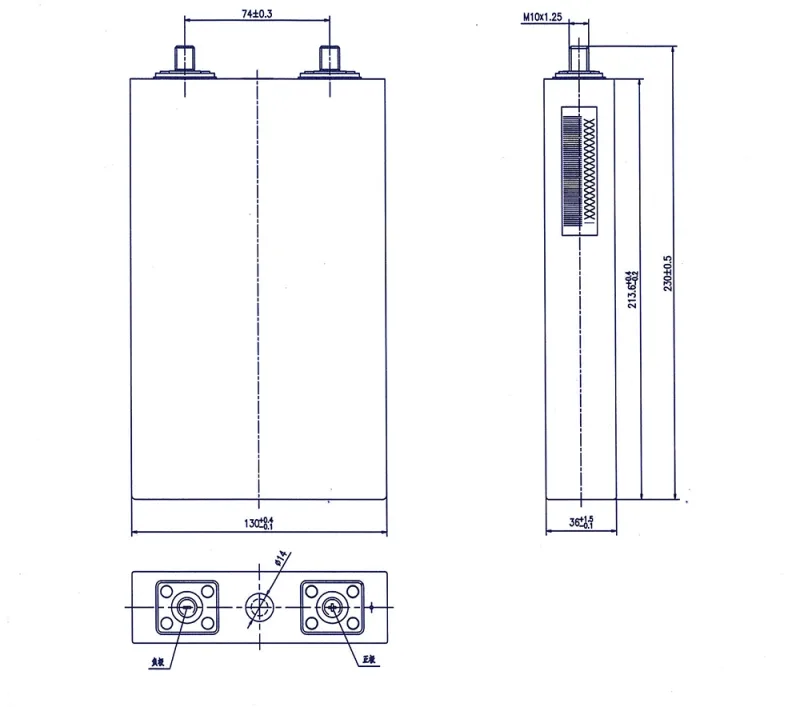

DIMENSIONS
Safety & Excellent Consistency: Build-in Anti-Explosion Protection and Circuit Protection. We will match the capacity, voltage and resistance of each lifepo4 battery cells before delivery.
High Quality: Our Grade A cells meet the rated capacity. With advanced equipment and strict quality testing standards, trying to bring our customers the most cost-effective products. Using high production technology, LiFePO4 Battery has higher performance, it can adapt to a variety of applications, and has better stability and tolerance in high-temperature discharge.
High Discharge Rate: Our 3.2V 100Ah meets the discharge of 15 minutes 4C high rate.
Environmentally Friendly: No leaking problems. Our Grade A Lithium Iron Phosphate Battery with Multi-protect Safety System, ensures your safety and the protection of the Lithium Iron Phosphate Battery uses
Easy To Assemble: Our battery cell is easy to install, including the connecting piece, and screws. No professional knowledge is required, and it can be assembled in 10 minutes.
Widely Used: This battery cell is designed for all kinds of EVS projects including marine projects which need high discharge rate requirements. Â
This battery cell is designed for all kinds of EVS projects including marine projects which need high discharge rate requirements. Â
