  • 330V 100Ah (33KWH) Electric Car Lithium Battery, Electric Pick Up Truck Battery, Logistic Vehicle Battery from Bonnen Battery

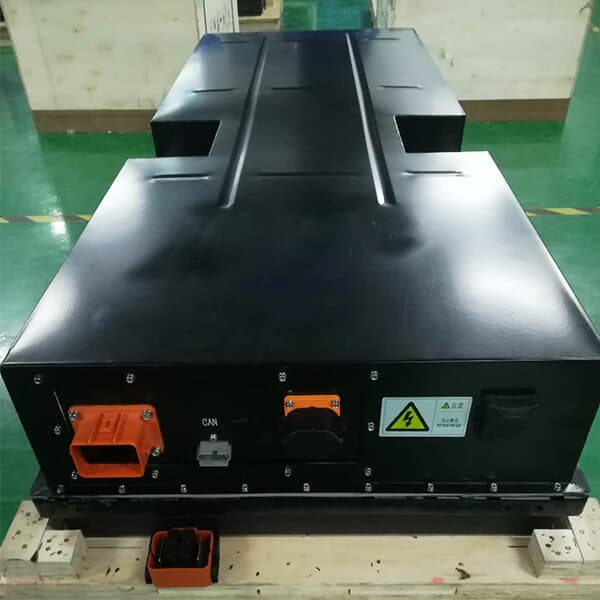

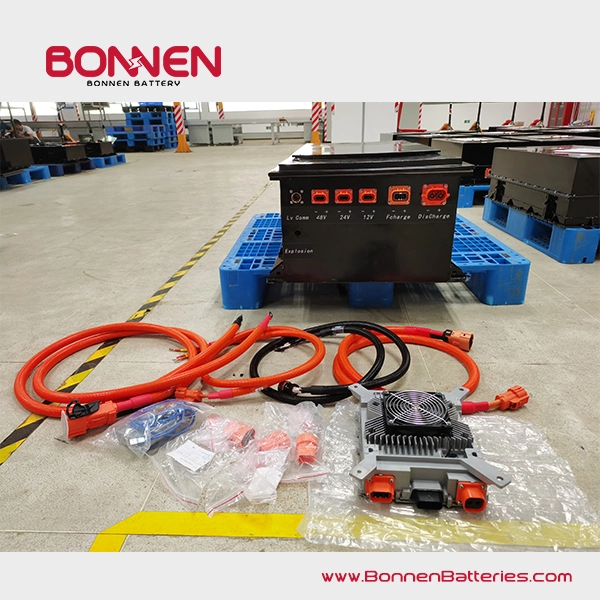

330V 100Ah (33KWH) Electric Car Lithium Battery, Electric Pick Up Truck Battery, Logistic Vehicle Battery

Bonnen Battery EV Batteries use a much higher quality lithium compared to competitors. Our engineers have design and tested a complete battery system that replaces outdated other batteries. Easy installation and the batteries require ZERO Maintenance. There is no need for multiple chargers and lengthy installation. Complete systems drop into the same location of the original battery system.

  • More than 10 years life cycles.

  • Light-weight: Light weight design, packed by aluminum plate and plastic components.

  • Module design: Reasonable capacity, can be assembled to a different voltage.

  • Insulation: Perfect electrical insulation, both inside and outside.

  • Performance: Good heat conductivity, safety performance.

  • No more maintenance.

Request A Quik Quote

Lithium Battery 330V 100Ah Li-Ion Battery Pack For Electric Car, Electric Pick Up Truck, Logistic Vehicle

Features:

1. NCM battery technology, 328.5V 100AH, 90S2P.

2. 30KW continue discharging, 60KW max discharge for 30 seconds, 90KW pulse for 5 seconds.

3. Smart BMS integrated into the battery pack with CAN communication.

4. Short circuit/ Over current/ Over voltage/ Over temperature protection/SOC/SOH.

5. Strong steel case.

6. Natural cooling, heating in winter is optional.

No. Item Name Basic parameter
1 Battery type NCM
2 Capacity(kWh) ≥32.8
3 Weight(kg) ≤270Kg
4 Rated voltage(DC V) 328.5V
5 Voltage range(DC V) 270V-378V
6 Continuous discharge current(A) 100A @EOL,@25℃
7 Peak discharge current(A) 200A/30s; 300A/5s;
8 Continuous charging current(A) 100 @EOL,@25℃
9 Charging requirements CC-CV
10 Charge discharge energy efficiency ≥98% @EOL,@0.5C charge and discharge
11 Warranty 3 years @1C charge and discharge @100%DOD
12 Cooling / Heating mode Natural
13 IP grade IP67
14 Working environment temperature (℃) -20~45
15 System self discharge rate ≤5%
16 Insulation resistance ≥50MΩ

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.

1): Are you a manufacturer or a trader?

Re: We are an expert in lithium battery manufacturer. We have successfully provided all kinds of comprehensive lithium battery solutions to different counties for about 10 years.

2): What brand and chemistry of batteries do you use?

Re: We will use LifePo4 or NMC lithium battery cells for your solution. In order to guarantee the quality of performance. We normally use the cell or module from Tier 1 battery cell manufacturer in the world. For example, we will use the lithium battery cells from GOTION or EVE. GOTION is the lithium battery cell supplier of Volkswagen. EVE is the lithium battery cell supplier of Daimler.

3): Is there a discount available if I order large quantities?

Re: Yes, with more bulk size orders, prices will be cheaper.

4): Do you offer battery chargers?

Re: Yes, we do. Please mention a charger when sending an inquiry. Please be advised that our charger cost is not included in the price of the battery.

5): What is your company’s intelligence like?

Re: Our company has ISO9001 certification. Most of our products are UN38.3, IEC62133, and CB certified.

6): When will my order be shipped?

Re: Normally 30 days after payment is received, but it can be negotiated based on order quantity and production schedule.

7): What is the quality guarantee period?

Re: 3 years!

8): How much range can I expect from an Electric Car battery pack?

Re: Currently, electric vehicles have a range of more than 200km per charge. It also needs to consider the factors of battery system total energy, temperature, rolling resistance, acceleration etc.

9): Is the Electric Car battery system waterproof?

Re: Bonnen Battery offers custom IP65 and IP67 levels. The IP67 level can at least ensure that the battery pack is immersed in water at a depth of one meter. This will not cause problems for a certain period of time.
