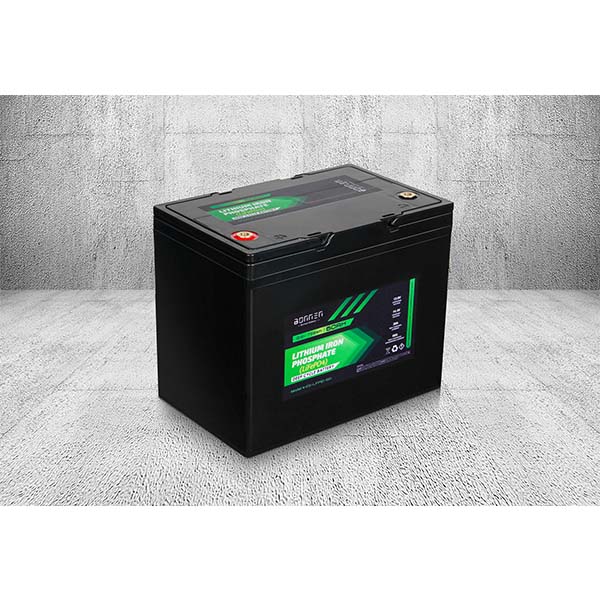

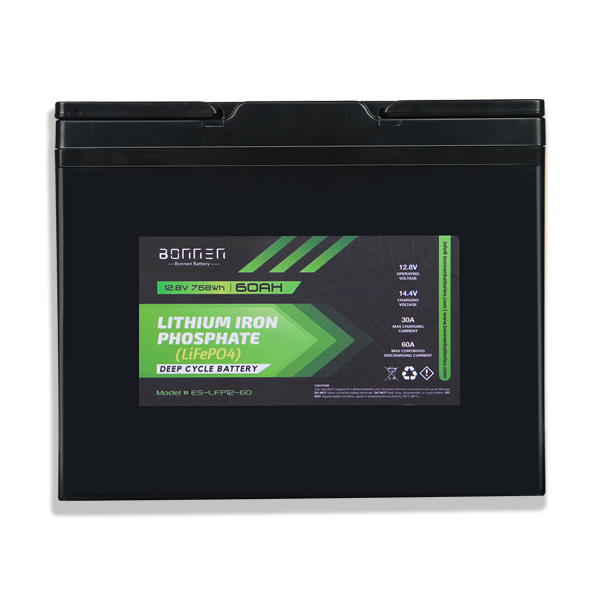

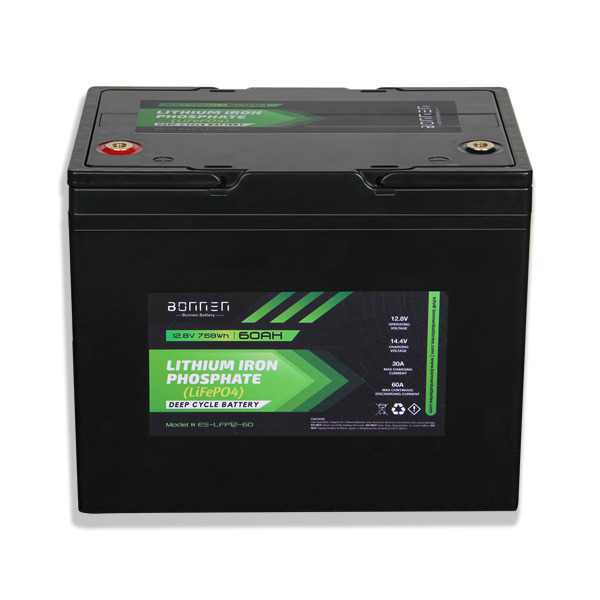

12V 60AH LiFePO4 Lithium Ion Battery

  • Drop-in replacement for lead acid battery

  • More than 10 years life cycles

  • Wide operating temperature range

  • Steady output voltage

  • Safety Protection: Overcharge protection, Over discharge protection, Short-circuit protection

  • Low self-discharge, can long time storage

  • Green Energy without contaminants

Request A Quik Quote
Nominal Voltage 12.8V
Nominal Capacity 60Ah
Energy 768wh
Resistance ≤ 50 mΩ
Efficiency  99%
Self Discharge <3% per Month
Max Continuous Discharge Current 60A
Peak Discharge Current 120A(7.5S±2.5S)
BMS Discharge Current Cut Off 140A±20A(20±5ms)
Recommend Low Voltage Disconnect 11V
BMS Discharge Voltage Cut Off 8V (2±0.08vpc)(140±60ms)
Reconnect Voltage 9.2V (2.5±0.1vpc)
Short Circuit Protection 200-600μs
Recommend Charge Current 20A
Maximum Charge Current 30A
Recommend Charge Voltage 14.2V-14.6V
BMS Charge Voltage Cut Off 15.2V (3.8±0.025vpc)(1.1±0.4s)
Reconnect Voltage 14.4V(3.6±0.05vpc)
Balancing Voltage 14.4V(3.6±0.025vpc)
Discharge Temp. Range -20℃ to 55℃
Charge Temp. Range 0℃ to 45℃
Storage Temp. Range -5℃ to 35℃
BMS High Temp Temp Cut Off 70℃
Reconnect Temp 50℃

Length Width Height Weight
223mm 150m 178mm 6.7Kg
8.8” 5.9”  7.0” 15Lbs

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
