Project Description

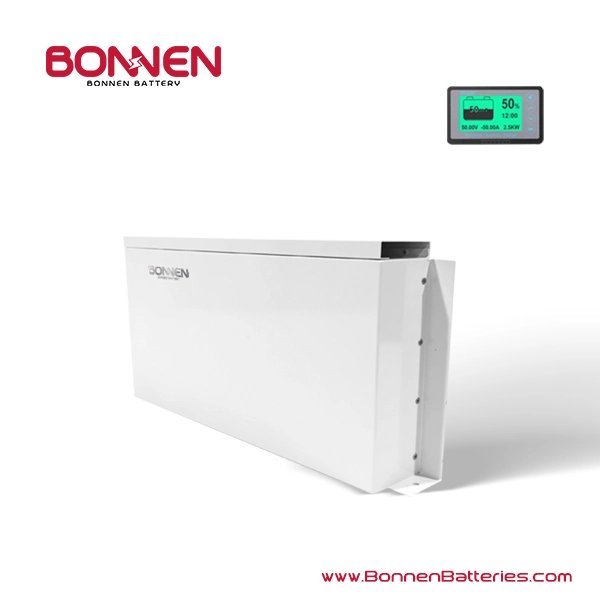

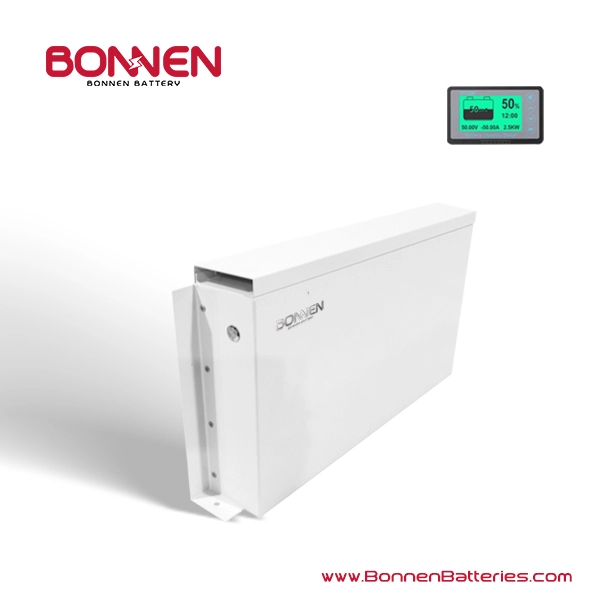

12V 200AH Slimline Lithium Battery
Drop-in replacement for lead acid battery
More than 10 years life cycles
Savings 70% in volume & weight compared to lead-acid batteries
With battery management system (BMS)
Safety Protection: Overcharge protection, Over discharge protection, Short-circuit protection
Low self-discharge, can long time storage
Less space needed for installation, sleek look in harmony with your device
Household energy storage system, Caravan, E-mobility etc.
Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah |
Energy | 2560wh |
Resistance | ≤ 30 mΩ |
Efficiency | 99% |
Self Discharge | <3% per Month |
Max Continuous Discharge Current | 200A |
Peak Discharge Current | 300A(7.5S±2.5S) |
Recommend Low Voltage Disconnect | 11V |
BMS Discharge Voltage Cut Off | 8V (2±0.08vpc)(140±60ms) |
Reconnect Voltage | 9.2V (2.5±0.1vpc) |
Short Circuit Protection | 200-600μs |
Recommend Charge Current | 50A |
Maximum Charge Current | 100A |
Recommend Charge Voltage | 14.2V-14.6V |
BMS Charge Voltage Cut Off | 15.2V (3.9±0.025vpc)(1.1±0.4s) |
Reconnect Voltage | 15.2V(3.8±0.05vpc) |
Balancing Voltage | 14.4V(3.6±0.025vpc) |
Discharge Temp. Range | -20℃ to 55℃ |
Charge Temp. Range | 0℃ to 45℃ |
Storage Temp. Range | -5℃ to 35℃ |
BMS High Temp Temp Cut Off | 70℃ |
Reconnect Temp | 50℃ |
Length | Width | Height | Weight |
824mm | 80mm | 301mm | 28Kg |
32.4” | 3.15” | 11.9” | 61.7Lbs |
Warnings
- Never connect the positive and the negative of the battery with metal
- Never ship or store the battery with metal
- Never cut or puncture the battery
- Do not expose the battery to water
- Do not expose the battery to fire & high temperature
Storage &Non Use
- Storage in a dry place with temperature of not exceeding 30°C
- For long term storage keep battery charged 30%-50% of capacity
- Do not storage battery with metal
- Use terminal post covers to prevent any short circuit circumstance
Additional Product Information
The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
