Project Description

  • 12V100AH lithium ion battery drop-in replacement for lead acid battery

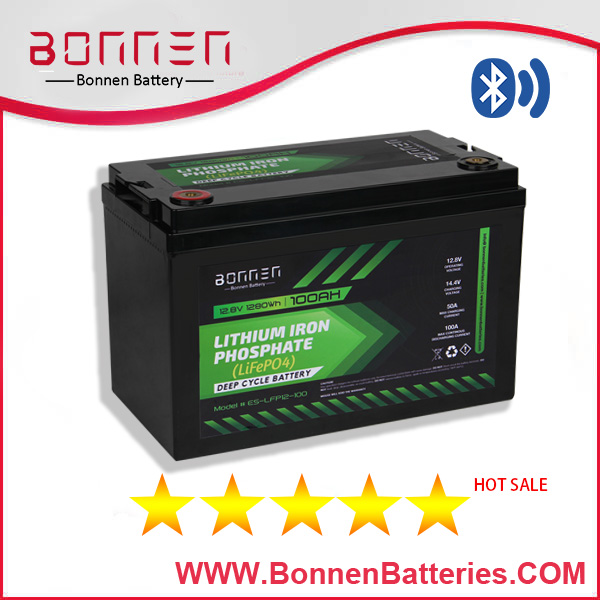

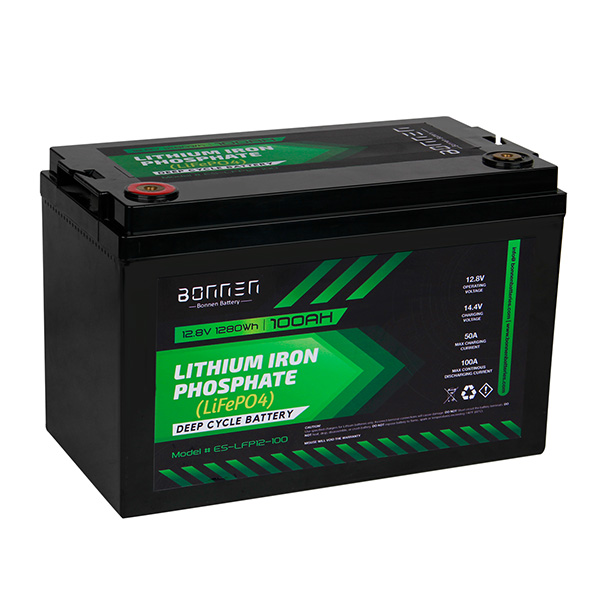

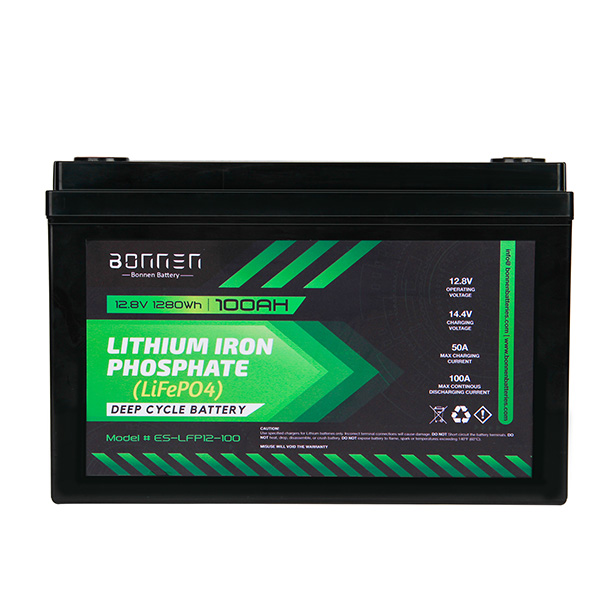

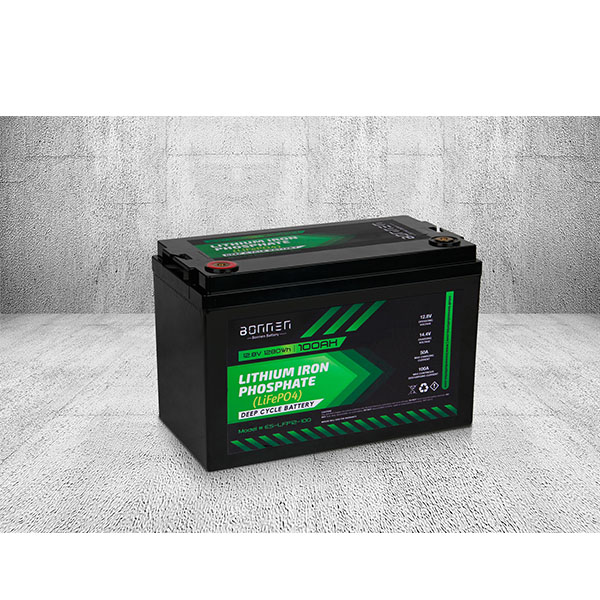

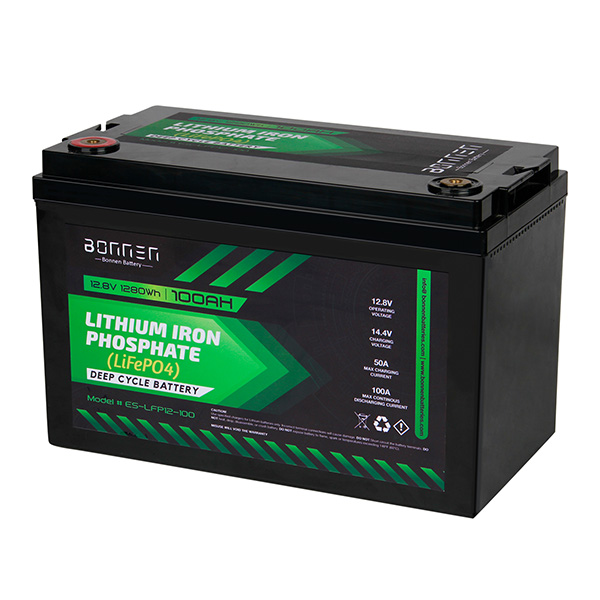

12V 100AH LiFePO4 Lithium Ion Battery

  • Drop-in replacement for lead acid battery

  • More than 10 years life cycles

  • Wide operating temperature range

  • Steady output voltage

  • Safety Protection: Overcharge protection, Over discharge protection, Short-circuit protection

  • Low self-discharge, can long time storage

  • Green Energy without contaminants

Requst A Quik Quote
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Energy 1280wh
Resistance ≤ 30 mΩ
Efficiency  99%
Self Discharge <3% per Month
Maximum Modules In Series 6
Max Continuous Discharge Current 100A
Peak Discharge Current 200A(7.5S±2.5S)
BMS Discharge Current Cut Off 280A±50A(9±4ms)
Recommend Low Voltage Disconnect 11V
BMS Discharge Voltage Cut Off 8V (2±0.08vpc)(140±60ms)
Reconnect Voltage 9.2V (2.5±0.1vpc)
Short Circuit Protection 200-600μs
Recommend Charge Current 50A
Maximum Charge Current 100A
Recommend Charge Voltage 14.2V-14.6V
BMS Charge Voltage Cut Off 15.2V (3.9±0.025vpc)(1.1±0.4s)
Reconnect Voltage 15.2V(3.8±0.05vpc)
Balancing Voltage 14.4V(3.6±0.025vpc)
Discharge Temp. Range -20℃ to 55℃
Charge Temp. Range 0℃ to 45℃
Storage Temp. Range -5℃ to 35℃
BMS High Temp Temp Cut Off 70℃
Reconnect Temp 50℃

Length Width Height Weight
329mm 172mm 223mm 13.5Kg
12.95” 6.77”  8.8” 5.6Lbs

Warnings

  • Never connect the positive and the negative of the battery with metal
  • Never ship or store the battery with metal
  • Never cut or puncture the battery
  • Do not expose the battery to water
  • Do not expose the battery to fire & high temperature

Storage &Non Use

  • Storage in a dry place with temperature of not exceeding 30°C
  • For long term storage keep battery charged 30%-50% of capacity
  • Do not storage battery with metal
  • Use terminal post covers to prevent any short circuit circumstance

Additional Product Information

The Lithium battery makes every attempt to verify that its products are used and designed for your application. For additional questions or concerns, please contact with Bonnen or your distributor.
