LFP Battery vs NMC Battery: Choosing the Right Battery for Your Electric Boat

In short: LFP (LiFePO4, lithium iron phosphate) batteries excel in safety, longevity, and cost, while NMC (nickel-manganese-cobalt) batteries offer higher energy density and better cold-weather performance ⇱. Which is “better” depends on your boat’s mission. Below we compare both battery types for electric boats ⇱, so you can pick the best battery chemistry for your needs.

Introduction

The electric-boat industry is booming worldwide. In fact, the global e-boat market was about $6.8 billion in 2024 and is expected to nearly double by 2030 ⇱. Tight new emission rules (like IMO’s sulfur cap and the EU Green Deal) and growing demand for clean transport are driving this growth. More manufacturers – from large shipbuilders down to leisure-craft OEMs – are adding electric models⇱. In this push toward greener boating, the battery is the core power source ⇱. Its type determines range, safety, and cost. This article zeroes in on two major Li-ion chemistries – LiFePO4 (also called LFP) and NMC – to highlight their features in marine use. Think of it as a guide for choosing the right battery pack for your electric boat⇱.

What is a LiFePO4 Battery?

• Chemistry: LFP uses lithium iron phosphate for the positive electrode (cathode) and a carbon (graphite) negative electrode. The name LiFePO₄ comes from the FePO₄ (iron phosphate) crystal in the cathode.

• How it works: Like all lithium ion cells, charging moves Li⁺ ions from the cathode into the anode, and discharging reverses that flow. This shuttling of Li⁺ is very stable in the olivine structure of LFP, so the battery behaves predictably.

• Voltage & Density: A single LFP cell is about 3.2 V nominal. Its energy density ⇱ is modest – roughly 100–150 Wh/kg in today’s cells. (Next-gen LFPs are pushing ~180–200 Wh/kg in labs.)

• Why it matters: LFP’s simple chemistry (no nickel or cobalt) makes it very safe and robust. You’ll see these batteries in applications where safety and long life outweigh compact size – for example solar storage or industrial uses.

What is an NMC Battery?

• Chemistry: NMC batteries use a mix of nickel, manganese, and cobalt oxides for the cathode (formulas like LiNi₁₋ₓMnᵧCoₓO₂), with a graphite anode. The proportions (N:M:C) vary (like 1-1-1 or 8-1-1).

• How it works: NMC cells also move Li⁺ ions between electrodes during charge/discharge. Their base voltage is higher – around 3.6–3.7 V per cell – compared to 3.2 V for LFP.

• Voltage & Density: Because of the Ni content, NMC cells pack more energy. Typical NMC energy density is 150–220 Wh/kg (some high-end cells approach 250–275 Wh/kg).

• Why it matters: NMC chemistry was developed for electric vehicles where high range and power output are important. It offers high specific energy and decent power, but the cobalt and nickel make it more expensive and slightly less stable.

Key Traits of LiFePO₄ in Electric Boats

• Safety: LFP batteries are very safe ⇱. Their thermal runaway temperature is around 270 °C – much higher than most lithium ion battery cells. In practical terms, LFP packs are hard to overheat or catch fire. This is a big plus on a boat, especially in enclosed spaces.

• Cycle Life: LFP cells last a long time. Typical cycle life ⇱ is 4,000+ cycles. That means even daily use for 10–15 years before capacity falls significantly. Long life suits boats that operate for many years with minimal battery replacement.

• Cost & Materials: LiFePO4 uses cheap, abundant iron and phosphate, and no cobalt or nickel. Its material costs are more stable, so LFP packs generally run 15–30% cheaper than equivalent NMC packs. (No surprise: LFP is widely used where budget and raw-material risk are big concerns.)

• Temperature Resilience: LFP chemistry handles heat well. It can safely operate in high ambient temps (up to around 60 °C). In tropical or temperate waters (30–40 °C), an LFP pack will degrade slower over time than NMC, which is less stable when hot.

• Downside – Energy Density: The trade-off is space and weight. LFP energy density is lower (~120–150 Wh/kg) than NMC. For the same range, an LFP battery needs more volume (and adds weight) in the boat. In cramped boat designs, this can be a challenge.

Key Traits of NMC in Electric Boats

• High Energy Density: NMC’s big advantage is range. At about 200–250 Wh/kg, NMC packs are ~20–40% more energy-dense than LFP. Practically, an NMC pack can give an e-boat much longer run time for the same size and weight of batteries. This boosts range or allows smaller batteries for the same range.

• Cold-Weather Performance: NMC batteries retain power better in freezing temperatures. Tests show an NMC cell can keep roughly 60–70% of its room-temp capacity at –20 °C (that’s roughly ~80–90% at 0 °C). This makes NMC a strong choice for high-latitude operations (ice-region ferries or coastal supply boats) where low-temperature efficiency matters.

• Fast Charging: Many NMC cell formulations support higher charge rates (up to 1C–2C). In other words, you can charge an NMC pack in half the time compared to a 0.5C charge. For boats that need quick turnaround in port, NMC’s fast-charge capability can improve uptime.

• Downside – Safety: NMC is less safe than LFP. Its thermal runaway ⇱ kicks in around 210 °C, and it can release oxygen at high temps. In practice, NMC packs require more sophisticated Battery Management and sometimes extra fire suppression (adding cost and complexity) to meet marine safety standards.

• Downside – Cycle Life: NMC generally has shorter life. You can expect on the order of 1,500–2,000 cycles before significant fade. In a boat running daily, that might mean needing new batteries after 5–8 years. Over a decade, that can make long-term cost higher than an LFP system.

• Downside – Materials Cost: NMC cells contain cobalt and nickel, whose prices swing with the global market. This means NMC pack costs can rise and fall more. A sudden cobalt price spike will pinch an NMC-heavy solution more than LFP (which has none of those metals).

Application Examples

• LiFePO4 (LFP) Usage: Inland ferries, river cargo boats, and short-range coastal shuttles often go with LFP packs. These vessels benefit from LFP’s safety (important on packed decks) and long life (meaning fewer replacements over years). The slightly larger battery volume is usually acceptable on routes that don’t require extreme range.

• NMC Usage: Boats that need maximum range or reliable power often use NMC packs. For example, some northern European passenger ferries and offshore supply vessels use high-density NMC batteries so they can cover longer routes without recharging. Norway’s famous Ampere electric car ferry ⇱ is equipped with a 1 MWh Li-ion battery (built from NMC cells) to make 34 round trips per day. (In very cold weather, NMC ensures the ferry can still go far, though at a modest capacity drop.)

• Core Differences: In short, LFP boat batteries are typically cheaper and safer to run (ideal for calm-weather, short-hops), whereas NMC boat batteries trade extra safety measures for more range and power. The choice often boils down to range vs. risk: Need nonstop, long runs or operation in cold seas? NMC wins. Need the safest, longest-lived pack for short commuter routes? LFP wins.

Key Factors for Battery Selection

• Operating Profile: Consider your routes and climate. Coastal or river runs in warm climates can use LFP (safety + life). High-latitude or long-range routes might demand NMC (extra energy and cold tolerance).

• Range vs. Space: How far must the boat go between charges? If you need maximum range and can spare volume/weight, NMC’s higher density can shrink pack size by ~20–40%. For shorter routes or when weight is critical, LFP’s drawbacks are less painful.

• Total Cost: Think in terms of total cost of ownership. LFP packs cost less up front (no cobalt) and last longer, so maintenance and replacement costs are lower. NMC packs may cost more initially and will likely need replacement sooner, raising life-cycle cost. (However, if your revenue relies on high performance, the extra range might justify the premium.)

• Safety & Certification: Marine batteries must meet strict standards. For example, China’s Classification Society (CCS) and others have certified many LFP and NMC battery systems for ships. In the EU, CE marking and passenger vessel rules apply. Ensure any pack (whether LFP or NMC) is certified for marine use. Often, LFP’s inherent safety makes certification easier.

• Future Regulations: Keep an eye on evolving rules. Emergency egress, fire suppression, and battery management requirements may tighten, especially for larger vessels. The more stable chemistry (LFP) gives extra margin under stricter regimes.

Future Trends in Marine Batteries from Battery Technology

• Higher-Energy LFP: New LFP formulations are pushing energy density up. Next-gen iron-phosphate materials (nano-coating, doping) aim for ~200 Wh/kg or more ⇱. If achieved, the density gap with NMC will narrow, making LFP even more attractive for all marine uses.

• Advanced NMC: NMC chemistries are also evolving. Cobalt content is being cut (e.g. NMC 811, NMC 532) to reduce cost and improve stability. Manufacturers are developing better cell designs and additives to raise the thermal runaway temperature and cycle life. Expect gradually safer, cheaper NMC packs in the next few years.

• Hybrid Systems: Some boat designers are experimenting with mixed battery packs. For example, an e-vessel might carry mostly LFP modules for daily cruising (safety and durability) plus a small NMC module for occasional long-range bursts. This combo can deliver a balance of cost, safety, and range. It’s an emerging idea in industrial and automotive fleets, and marine uses may follow.

• Battery Management & Safety Tech: Regardless of chemistry, smarter BMS, cooling, and fire-control systems are growing. New sensors and materials can catch issues before they cause failure. These systems especially benefit NMC packs (closing the safety gap), but all boat batteries will get smarter in the coming years.

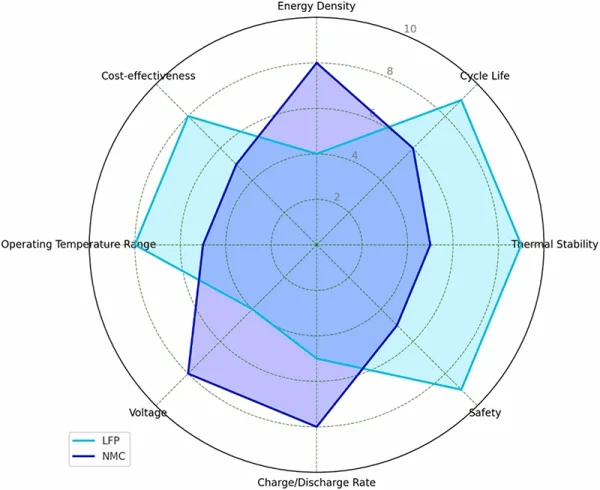

Summary of LFP vs NMC

–

–

Match to Your Boat: For a short-range river ferry or coastal ferry in warm waters, LFP’s high safety and low cost usually make it the preferred choice. For a long-haul or arctic-route ship, NMC’s extra range (and ability to charge fast in cold) can be worth the extra precautions and cost. Some operations even mix both for the best of both worlds.

Choosing the right battery chemistry is key to performance and safety. By comparing these core characteristics above, boat designers and operators can precisely match the battery to their needs.

FAQs

1. What is the fundamental difference between LFP and NMC batteries for marine use?

LFP (Lithium Iron Phosphate) batteries utilize iron phosphate as the cathode material, which offers superior thermal stability and safety, whereas NMC (Nickel Manganese Cobalt) batteries use a mix of nickel, manganese, and cobalt to achieve higher energy density. In a marine environment, the choice typically comes down to a trade-off: LFP is the “safety and longevity” choice, while NMC is the “lightweight and high-performance” choice.

2. Which battery type is safer for an electric boat in saltwater environments?

LFP batteries are inherently safer for marine applications because they have a much higher thermal runaway temperature (around 270°C) compared to NMC batteries (around 210°C). This chemical stability means LFP batteries are significantly less likely to catch fire or explode if punctured or overcharged, which is a critical consideration for confined vessel engine rooms.

3. How does the cycle life of LFP vs NMC batteries compare for long-term boat ownership?

LFP batteries offer a significantly longer service life, typically providing between 3,000 to 6,000 full charge cycles before reaching 80% capacity. In contrast, NMC batteries generally offer a cycle life of 1,000 to 2,000 cycles. For a boat owner, choosing LFP can result in a battery bank that lasts 3 to 4 times longer than an NMC alternative under the same usage patterns.

4. If I have a small, weight-sensitive electric boat, should I choose NMC?

Yes, if weight is your primary constraint, NMC is the superior option because its energy density is approximately 30% to 50% higher than LFP. This means an NMC battery pack can provide the same amount of energy as an LFP pack while being significantly lighter and smaller, which helps maintain the buoyancy and speed of small or high-performance vessels.

5. What is the energy density of NMC vs LFP in terms of Wh/kg?

NMC batteries typically boast an energy density of 150–220 Wh/kg, whereas LFP batteries generally fall within the 100–150 Wh/kg range. This data point is crucial for naval architects; using NMC allows for more stored energy within the same physical footprint, effectively extending the vessel’s cruising range without adding excessive mass.

6. Are LFP batteries more cost-effective for commercial electric ferries?

From a Total Cost of Ownership (TCO) perspective, LFP batteries are more cost-effective for commercial vessels that operate daily. Although the initial investment might be similar, the “cost per cycle” of LFP is much lower due to its 5,000+ cycle capability, reducing the frequency of expensive battery replacements over the ship’s 10-20 year lifespan.

7. How does temperature sensitivity affect LFP and NMC battery performance on the water?

NMC batteries tend to perform slightly better in extremely cold water conditions, maintaining higher discharge efficiency. However, LFP batteries are far superior in high-temperature environments or high-load scenarios because their chemical structure does not degrade as quickly when exposed to heat, making them ideal for tropical climates or heavy-duty towing.

8. Can I charge NMC batteries faster than LFP batteries?

NMC batteries generally support higher charging rates (C-rates) without significant degradation, allowing for “fast charging” solutions that are often required for high-speed electric boats. While LFP can also be charged quickly, doing so frequently can impact its lifespan more than it would an NMC cell specifically designed for high power throughput.

9. What are the environmental impacts of LFP vs NMC batteries?

LFP batteries are considered more environmentally friendly because they do not contain heavy metals like cobalt or nickel, which involve high-impact mining processes and are harder to recycle. Choosing LFP for your electric boat reduces the ecological footprint of your energy storage system, aligning with the “green” goals of electric propulsion.

10. Why is the thermal runaway risk lower in LFP batteries for marine engine rooms?

The oxygen atoms in the LFP cathode are more tightly bonded in a phosphate structure, which does not release oxygen during a short circuit or overheating event. Because NMC cathodes can release oxygen during failure, they can support combustion even without external air, making a fire much harder to extinguish in a marine cabin.

11. Is there a difference in the Depth of Discharge (DoD) between these two types?

Both LFP and NMC allow for a high Depth of Discharge, typically up to 80-90% of their total capacity. However, LFP is more resilient to being kept at a high State of Charge (SoC) for long periods, whereas NMC batteries prefer to be stored at a partial charge to prevent capacity loss over time.

12. Which battery is better for a slow-moving electric houseboat?

For houseboats where space and weight are less of a concern, LFP is the definitive choice. The priority for a houseboat is safety (being a living space) and long-term reliability for domestic loads like refrigeration and lighting, both of which are strengths of the LFP chemistry.

13. What is the voltage stability of LFP batteries compared to NMC during discharge?

LFP batteries provide a very flat discharge curve, meaning the voltage remains stable and consistent until the battery is almost completely depleted. NMC batteries have a more linear voltage drop; as the battery drains, the voltage decreases steadily, which can sometimes result in a noticeable drop in motor performance toward the end of a trip.

14. How should I choose between LFP and NMC based on my boat’s range requirements?

To choose the right battery, follow these three steps: First, calculate your required range in nautical miles; second, check your hull’s maximum weight capacity; if you need maximum range but have a strict weight limit, choose NMC. If you have the space and can afford the extra weight, choose LFP for better safety and value.

15. Do LFP batteries require less maintenance than NMC batteries?

Both types are virtually maintenance-free compared to lead-acid batteries, as they do not require water refilling. However, LFP batteries are more “forgiving” regarding charging mistakes and long-term storage, making them easier to manage for seasonal boaters who might leave their vessel in storage for several months.

16. Are there specific BMS (Battery Management System) requirements for LFP vs NMC?

Yes, a BMS must be specifically calibrated for the chemistry it manages because LFP and NMC have different nominal voltages (typically 3.2V for LFP vs 3.6V-3.7V for NMC). You cannot use an NMC-rated BMS on an LFP battery bank, as the voltage cut-off points would be incorrect, leading to either undercharging or dangerous overcharging.
