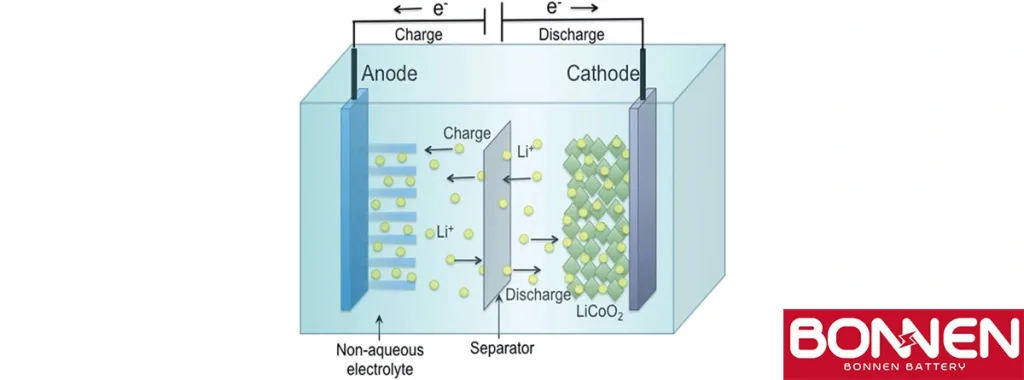

How to Charge Lithium ion Batteries

The charging process of lithium-ion batteries can be divided into four stages: trickle charge (low-voltage precharge), constant current charge, constant voltage charge, and charge termination. Understanding these stages is crucial for anyone working with various types of batteries, especially when choosing the right charger designed for lithium-ion cells.

The basic requirement of a lithium battery charger is a specific charging current and charging voltage to ensure safe battery charging. Other auxiliary functions are added to improve battery life and simplify the operation of the charger, including trickle charging for over-discharged batteries, battery voltage detection, input current limit, turning off the charger after charging is complete, and automatic start charging after partial discharge.

Lithium-ion batteries are often used in electric vehicles and other applications requiring reliable power sources. The charging method of lithium batteries is limited voltage and constant current, controlled by an IC chip. The typical charging method is: first detect the voltage of the battery to be charged. If the voltage is lower than 3V, pre-charge first, and the charging current is set to 1/10 of the current. After the voltage rises to 3V, it enters the standard charging process.

The standard charging process is: constant current charging with the set current; when the battery voltage rises to 4.20V, change to constant voltage charging and keep the charging voltage at 4.20V. At this time, the charging current gradually decreases, and when the current drops to 1/10 of the set charging current, charging terminates.

Stage 1: Trickle Charge

Trickle charge is used to precharge (recovery charge) the fully discharged battery cell first. When the battery voltage is lower than about 3V, trickle charging is used. The trickle charging current is one-tenth of the constant current charging current, which is 0.1C (taking a constant charging current of 1A for example, and the trickle charging current is 100mA).

This stage is critical, particularly for lithium iron phosphate (LiFePO4) batteries, commonly referred to as lifepo4 batteries. They are known for their thermal stability and safety features, making them ideal for high-performance applications, including electric vehicles and energy storage systems.

What is ⇲Trickle charging?

Stage 2: Constant Current Charging (CC Charging)

When the battery voltage rises above the trickle charge threshold, the charging current is increased for constant current charging. The current for constant current charging is typically between 0.2C and 1.0C. The battery voltage gradually increases during this process, and generally, the voltage set for a single battery is between 3.0-4.2V.

It’s important to monitor the charge level closely at this stage. Using a charger that is specifically designed for lithium-ion technology ensures that the internal resistance of the battery does not become problematic, as higher internal resistance can lead to inefficient charging and energy loss.

Stage 3: Constant Voltage Charging (CV Charging)

When the battery voltage rises to 4.2V, the constant current charging ends, and the constant voltage charging phase begins. During this phase, the charging current gradually decreases from the maximum value as the charging process continues. When it decreases to 0.01C, the charging is considered terminated. (C is a way to express the nominal capacity of the battery against the current. For example, if the battery has a capacity of 1000mAh, 1C is the charging current of 1000mA.)

This stage can also be optimized for various battery types to enhance charge cycles. For instance, lead acid batteries have different charging requirements compared to lithium-ion batteries. The voltage and current characteristics must be adapted for the specific battery chemistry to maximize efficiency and lifespan.

Stage 4: Charge Termination

There are two typical charging termination methods: using the minimum charging current to determine or using a timer (or a combination of the two). The minimum current method monitors the charging current in the constant voltage charging stage and terminates the charging when the current decreases to the range of 0.02C to 0.07C. The second method starts timing at the beginning of the constant voltage charging phase and terminates the process after two hours of continuous charging.

The four-stage charging method generally takes about 2.5 to 3 hours to fully charge a discharged battery. Advanced chargers also implement additional safety measures. For example, if the battery temperature exceeds the specified window (usually 0°C to 45°C), charging will be suspended. After the charge is terminated, if the battery voltage is detected to be lower than 3.89V, it will recharge.

The remaining capacity of the battery can be estimated by measuring the voltage roughly as follows:

• 4.20V — 100%
• 3.95V — 75%
• 3.85V — 50%
• 3.73V — 25%
• 3.50V — 5%
• 2.75V — 0%

Fast Charge Considerations

With advancements in technology, fast charge options are available that can significantly reduce charging times. However, it’s crucial to ensure that the charger is compatible with the battery type and that it is designed to handle the higher voltage and current levels without damaging the battery.

Charging lithium-ion batteries quickly can be convenient, especially in applications where downtime is critical, such as in electric vehicles. Nevertheless, frequent fast charging can lead to increased heat generation and potential degradation of the battery over time.

Battery Maintenance and Storage

Proper storage conditions can extend the lifespan of lithium-ion batteries. It’s typically recommended to store batteries at about 40-60% charge. Storing them fully charged or completely empty can lead to degradation. When storing for an extended period, keep them in a cool, dry place, away from extreme temperatures.

When considering battery terminals, ensure they are clean and free of corrosion. Poor connections can lead to increased resistance and inefficient charging, which may result in longer charge times or even damage to the battery.

FAQs

1. How do you choose a charger for your lithium battery pack?

Choose a charger that matches the voltage and current specifications of your lithium battery pack. Look for smart chargers that include features like temperature control and voltage detection for added safety.

2. Can you use a regular battery charger on a lithium battery?

No, using a regular battery charger can be dangerous as it may not provide the correct voltage and current, potentially damaging the lithium battery or causing safety hazards.

3. Can I charge a lithium battery with an AGM charger?

No, AGM chargers are not suitable for lithium batteries. Use a charger specifically designed for lithium batteries to ensure proper charging and safety.

4. Why does leaving a lithium-ion battery empty damage it?

Leaving a lithium-ion battery empty for an extended period can lead to deep discharge, which can damage the battery’s internal structure and reduce its capacity.

5. Is it safe to charge lithium batteries?

Yes, it is safe to charge lithium batteries when using the appropriate charger and following the manufacturer’s guidelines. Ensure that the charger has safety features to prevent overcharging.

6. Is it better to drain a battery before charging?

No, it’s not necessary to fully drain lithium batteries before charging. In fact, it’s better to charge them when they reach about 20-30% capacity to prolong their lifespan.

7. How long to charge a lithium battery for the first time?

Typically, a lithium battery takes about 2.5 to 3 hours to charge fully for the first time, depending on its capacity and the charger used.

8. What’s the maximum charging current for lithium-ion batteries?

The maximum charging current varies by battery specifications, but it’s generally recommended to charge at a rate between 0.2C and 1.0C for safety and longevity.

9. Do lithium-ion batteries heat up while charging?

Yes, lithium-ion batteries may generate some heat during charging. However, excessive heat can be a sign of a problem. Chargers with temperature management features can help mitigate this.

10. Is it better to store external batteries full or empty?

Store lithium batteries at about 40-60% charge for optimal longevity. Fully charged or fully drained batteries can degrade faster when stored for long periods.

11. Does memory effect exist in lithium-ion batteries?

No, lithium-ion batteries do not suffer from memory effects. They can be charged at any time without affecting their overall capacity.

12. Is it good for your lithium battery if you don’t charge it fully?

It’s generally acceptable not to fully charge lithium batteries, but consistently doing so may limit their overall capacity over time. Partial charges are fine for maintaining battery health.

13. Does partial/random charging degrade a lithium battery?

Partial or random charging does not significantly degrade lithium batteries. In fact, lithium batteries prefer to be charged more frequently rather than being fully drained and then fully charged.
