EV Lithium Battery Thermal Runaway: Trigger Mechanisms & Global Standards Compared

In summary: Thermal runaway is a rapid, self-accelerating chain reaction in lithium-ion EV batteries that can reach >800 °C and blast out flammable gases, igniting neighboring cells. It is most often triggered by a crash, nail puncture, overcharge or overheating (any mechanical or electrical abuse) that causes an internal short. In this deep-dive we’ll explain the three-phase runaway process, compare global safety tests (China’s GB standards, UN/EU/UL rules), review how top makers protect packs, and look at simulation and future innovations. The conclusion is: controlling these triggers and meeting strict standards is critical for EV safety – a priority that Bonnen Battery’s high-quality cells and designs fully support.

1. Thermal Runaway Mechanisms and Hazards

Thermal runaway starts when abuse triggers ⇱ a local “hot spot.” For example, piercing a cell with a nail or severe crash (mechanical abuse), gross overcharge or over-discharge (electrical abuse), or exposure to an extreme heat source (thermal abuse) can create an internal short circuit. This causes the cell temperature to jump into the 80–120 °C range, igniting the chain reaction. In the self-heating stage, unstable materials break down and release heat. The anode’s SEI film decomposes around ~120 °C, the polymer separator begins melting at ~130–150 °C, and the electrolyte and electrode materials decompose above ~200 °C. Each step feeds more heat back into the cell (rates can reach 10–100 °C/s), so temperature accelerates rapidly. Finally, thermal runaway propagation ⇱ occurs: the overheated cell bursts, expelling extremely hot (≫800 °C) flammable gases that ignite in-flight. Those flames and gases then set off the next cell in seconds, creating a domino fire. Studies confirm that if unchecked, one failing cell can trigger its neighbors in under a minute. In practice, a grossly overcharged NMC cell can run away in just a few minutes, and pack-wide propagation completes in a matter of 3–10 seconds per cell.

Key data: The FAA notes that runaway events unleash intense fires – cell temps spike and a cocktail of flammable gases (H₂, CO, hydrocarbons, etc.) is vented, which often auto-ignites. In EVs, these fires burn hotter (600 °C+) and are harder to extinguish. In short, once thermal runaway starts, it is explosive and extremely dangerous.

2. Global Thermal Runaway Test Standards

Regulators worldwide have defined abuse tests and pass/fail criteria to limit runaway. Below is a summary table of key standards:

–

In practice, China’s standards are toughest: the new GB38031-2025 (for EV packs) mandates “no fire, no explosion” at all during or after a runaway event. This replaces the older 5-minute delay requirement and even bans significant smoke inside the cabin. Other regions are somewhat less stringent. For example, IEC 62660 (Europe) covers mechanical, electrical and thermal abuse, but historically did not demand a specific outcome (it focuses on test methods, not absolute no-fire criteria). Nonetheless, all standards now require robust monitoring: e.g. sensors must catch voltage drops (>50 mV/s), fast temp rises (>5 °C/s) or the presence of H₂, CO and other gases during tests (as in UL9540A).

–

3. Industry Protection Technologies

3.1 EV battery makers counter thermal runaway with multiple layers of protection:

• CATL (China): Uses multi-stage barriers at the cell, module and pack levels. Its Qilin battery pack has reportedly passed China’s new GB38031 tests (including the strict thermal propagation test) with zero fire. CATL also explores heat-absorbing insulation (like aerogel spacers) and redundant vent paths to keep any one cell from “cooking” its neighbors.

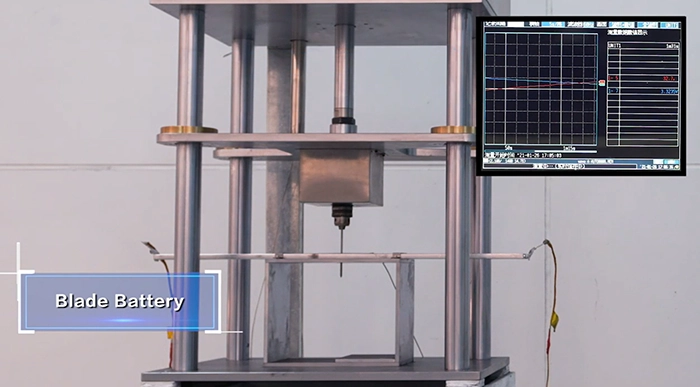

• BYD (China): Employs its LFP blade cells ⇱ in a honeycomb arrangement. In nail penetration tests the Blade battery simply got warm (surface ~30–60 °C) and never sparked flames. In fact, BYD demonstrated it heated a Blade pack to 300 °C and overcharged it by 260% with no fire. Additionally, BYD’s latest Seal sedan uses a cell-to-body (CTB) structural pack: the cells form part of the car’s chassis. This CTB design ⇱ greatly boosts crash resistance – BYD claims ~50% higher structural safety in a frontal crash (and double torsional stiffness) – which also helps avoid shorting or compression damage to the battery.

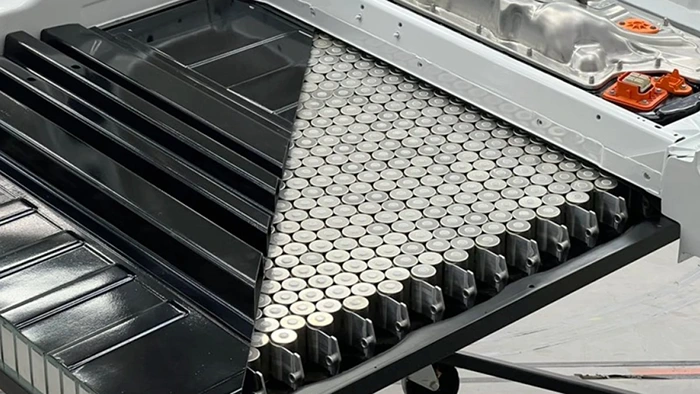

• Tesla (USA): The 4680 “Gen 2” cells use a full-tab winding (no single end termination) for uniform current and heat distribution. They also feature ceramic-coated separators (from Panasonic) that are much more heat-stable (shutting down or remaining intact up to ~180 °C) compared to older polymers. Tesla packs use serpentine-coolant channels that isolate each cell, delaying heat spread (one teardown study suggests this can add up to 15 minutes of propagation delay between cells). In short, Tesla’s large cells and advanced separators raise the runaway threshold and slow down any spread.

• LG Energy (S. Korea): Pioneered dual-coated separators. Their “SRS” separator has a ceramic coating on polyolefin/PVDF that reinforces the structure. At high temperatures it forms a rigid barrier, closing pores around ~130 °C to choke off dendrite growth. LG also integrates current interrupt devices and strict cell matching to reduce the chance of an internal short.

3.2 Key Safety Features

Structural materials: Packs often include thermal insulation and fire-blocking coatings. For example, SiO₂ aerogel mats (thermal conductivity ~0.018 W/m·K) can be wrapped around modules to survive hundreds of degrees. Intumescent fire-retardant paints or foams (which expand ≥50× when heated) can be sprayed between modules to slow flame spread. Special pressure-relief vents and burst panels are engineered so that if a cell ruptures, the hot gases are channeled safely out of the pack rather than into adjacent cells. Tesla, for instance, laser-etches a thin slit in the cell top that opens at ~1.5–2.0 MPa, directing the vent jet away.

BMS & early warning: Modern Battery Management Systems combine multiple signals to catch runaway early. If a cell voltage suddenly dips (e.g. >50–100 mV in a few milliseconds) or a group’s temperature spikes, the BMS will isolate/fail-safe. Crucially, gas sensors are becoming standard: tiny MEMS hydrogen detectors (detection limit ~0.1%) are now used in some EVs. Hydrogen is the first gas emitted when thermal abuse begins, so sensors see it before smoke or fire. In fact, experts note H₂ sensing provides minutes of early warning: regulations envision alerting passengers at least 5 minutes before a runaway could erupt in flames. Posifa’s MEMS H₂ sensor ⇱, for example, triggers in ~1 s to warn of even a trace of hydrogen. Active suppression is also used: BMS algorithms can throttle charge or disconnect strings when cells show even small over-voltage or heat, extending the margin (some designs claim to raise the overcharge trigger delay by 200–300%).

Thermal management: Battery packs use both passive and active cooling. Passive: Materials like phase-change waxes (PCM) can be placed between cells. On heating, PCM melts and absorbs large latent heat (200 kJ/kg is typical for paraffins), flattening the temperature rise (one study found ~40% better heat absorption with PCM). Active: EVs run coolant loops around the cells. For example, NIO’s ET5 sedan uses R1234yf refrigerant directly on cells. In a thermal event the system can immediately ramp flow (e.g. up to 200 L/min) to suck heat out at ~8 °C/min. Clever coolant routing also helps isolate cells: Tesla’s “snake” coolant pipe gives each 4680 cell its own dedicated path, so one cell’s hot fluid doesn’t rapidly heat its neighbor. Combined with insulation, this can delay or even stop fire spread (one simulation study showed a well-designed shrouded module could hold propagation at bay for many minutes).

4. Simulation and Prediction Technologies

Advanced modeling is used to anticipate runaway behavior.

4.1 Physics-based modeling:

Engineers build coupled electro-thermal-gas models. They might use the Newman pseudo-2D model (P2D) for diffusion of Li ions, Arrhenius kinetics for chemical decomposition, and CFD (e.g. STAR-CCM+) to track hot gas and flames. A typical toolchain is 3D CAD (CATIA/UG NX) → very fine meshing (≤0.5 mm grids in STAR-CCM+) → multi-field solver (coupling heat, fluid, chemical reactions). This reveals “hot spots” and vent paths before hardware testing. Indeed, the new UL9540A:2025 standard explicitly encourages a “digital twin” approach: run CFD simulations of packs to predict propagation paths and then validate them experimentally.

4.2 Digital-twin applications:

Some companies deploy real-time digital platforms. These fuse live BMS data (voltage, temp) with sensor data (H₂, pressure). Sophisticated AI models or lookup tables then predict if a thermal runaway is imminent. In pilot projects, integrated systems are warning operators ~3 minutes before full runaway with >95% accuracy (machine learning and sensor fusion at work). Separately, CFD simulations are used offline to optimize designs: for example, studies showed that by tuning vent locations via simulation, the blast pressure of vented gas can be cut ~50%, and overall pack safety improved ~30%. Over time, “smart packs” with embedded sensors and models may autonomously trigger isolated cooling or extinguishing actions.

5. Future Technology Trends

Looking ahead, safety is getting “smarter” and more materials-driven:

• AI and Early Intervention: Big-data and AI (e.g. Tesla’s Dojo platform) are being trained on hundreds of failure scenarios. These may soon predict runaway probability in real time to <2% error, enabling ultra-fast preventive actions. On the suppression side, tiny fire-extinguishers are in development. For instance, BYD has tested nano-aerosol pods that can detect the first flicker of a cell fire and dump an aerosol extinguishant within 0.1 s to snuff it out.

• Materials innovation: Solid-state batteries promise huge safety gains. Recent tests of QuantumScape’s lithium-metal cell showed no thermal runaway even at 300 °C ⇱ – they only vented a little gas, whereas a conventional Li-ion cell went into violent fire around 184 °C. This is thanks to nonflammable ceramic electrolytes and separators that act as built-in firewalls. Another idea is self-healing separators: for example, researchers (and some companies like CATL) are exploring microcapsules embedded in the separator that release a resin when a tiny short is detected, sealing the hole automatically.

• Pack-body integration: Ever more, batteries are being built into the vehicle structure (Cell-to-Body). BYD’s Seal (CTB) is a prime example – its pack is glued into the car chassis. This not only saves weight and space, but dramatically ups strength: BYD reports a ~50% higher crash safety metric for the CTB design. It also means that the pack is better armored against impact and heat – one could imagine future packs designed as “heat sinks” into the vehicle frame, further slowing any runaway.

FAQ

Q: What exactly is battery thermal runaway?

A: It’s a self-heating chain reaction in a Li-ion cell. Once started (by a short, overcharge or heat), the cell’s internal temperature keeps rising uncontrollably, causing violent reactions and flames.

Q: How fast can thermal runaway spread?

A: Very fast. In a single cell it can reach 800 °C+ within seconds. A fire in one cell can ignite the next in under a minute. In practical tests, a runaway triggered in one module can lead to neighboring modules catching fire in just 3–10 seconds per module.

Q: How do global safety standards help?

A: Tests like nail-puncture, overcharge and high-heat ensure packs delay or prevent fire. For example, China’s new GB38031 standard literally forbids any fire/explosion after damage. Other standards (UN/ECE, UL, IEC) require packs to survive specific abuse tests without propagating flames. In essence, they force designers to include robust barriers, venting and detection to meet those criteria.

Q: What safety features are most effective?

A: A multi-layered approach is best. Strong separators (ceramic-coated, coated with shrink-film) stop internal shorts. Flame-retardant interlayers and vent channels contain heat. Fast hydrogen sensors and smart BMS software catch anomalies early. And active cooling/PCM soak up heat during an event. Top battery makers combine all these: for instance, BYD’s LFP Blade cells + CTB pack + intensive BMS have shown near-zero risk in extreme tests.

Q: How can I make sure the batteries I use are safe?

A: Always specify cells from a reputable supplier and check they meet or exceed relevant standards (UL 2580, UN R100, GB 38031, etc.). Ensure proper BMS and cooling design in your pack. And demand that your cells have undergone rigorous abuse tests. Bonnen Battery, as an experienced exporter of Li-ion cells, designs our batteries with these safety measures in mind and works with certified labs to verify compliance.

Q: Why trust Bonnen Battery for my EV batteries?

A: Bonnen Battery specializes in high-quality lithium batteries for international markets. We stay on the cutting edge of battery safety: our cells are built to meet global standards (like those above), and we can customize packs with extra protection (venting, insulation, smart BMS) per customer needs. In other words, we apply all the best practices discussed here. If you need reliable, safe lithium batteries – whether for EVs, e-bikes, or energy storage – contact Bonnen Battery (bonnenbatteries.com). Our experts can help ensure your battery systems are designed for maximum safety and performance.

Q: Do lithium batteries have thermal runaway?

A: Yes — lithium-ion batteries can experience thermal runaway, but it’s not common if the battery and pack are well designed and used correctly. Thermal runaway needs a trigger (like a hard impact, overcharge, or extreme heat). Good cell chemistry (e.g., LFP), strong separators, a smart BMS, proper cooling, and certified testing greatly reduce the risk. Think of these features as the battery’s seatbelt, airbags, and crumple zones.

Q: How does Tesla prevent thermal runaway?

A: Tesla prevents thermal runaway with several layers of design and software:

• safer cell and separator choices (more heat-stable separators),

• large-format cells and optimized tabbing to spread heat evenly,

• a “snake” coolant loop that isolates cells and quickly moves heat away,

• robust pack structures with controlled venting, and

• advanced BMS software that watches voltage, current and temperature and isolates the pack if something looks wrong.
All together, these measures raise the temperature needed to trigger runaway and slow down any heat spread.

Q: What causes thermal runaway in lithium-ion batteries?

A: Common causes include:

• Mechanical damage (crash, puncture) causing internal short circuits;

• Electrical abuse (overcharging, charging at unsafe voltages, or heavy internal short-circuits from dendrites);

• Thermal abuse (hot environment, direct fire);

• Manufacturing defects or contamination that create weak spots inside the cell.
Any of these can start the chain reaction that becomes thermal runaway.

Q: How to prevent thermal runaway in lithium-ion batteries?

A: Prevention is layered:

• Choose safer chemistries (LFP is less prone to runaway than some NMC blends).

• Use high-quality cells from reputable makers.

• Add robust separators and thermal insulation in the pack.

• Install a smart BMS that monitors voltage, temperature, and can cut off charging quickly.

• Use active cooling or PCM (phase change material) for thermal buffering.

• Include vents and pressure relief to safely direct gases away.

• For everyday users: don’t overcharge, avoid extreme heat, use certified chargers, and don’t puncture or crush the battery.
Together, these steps make thermal runaway far less likely.

Q: Lithium ion battery thermal runaway temperature — at what temperature does it happen?

A: There isn’t a single “runaway temperature,” but some typical thresholds are:

Triggering hot spot: ~80–120 °C (local short or mechanical damage can create this).

SEI layer breaks down: ~120–150 °C.

Separator softens/melts: ~130–180 °C (varies by material).

Electrolyte decomposition: often above ~200 °C.

Jetting/combustion and very high temps: a runaway event can eject gases and reach hundreds to >800 °C locally.
So: the chain reaction begins at moderate temps but becomes catastrophic once decomposition starts above ~200 °C.
