Why Battery Thermal Management System Matters

Lithium batteries perform optimally between 25°C-40°C. Beyond 50°C, capacity drops sharply—500 charge/discharge cycles at 50°C cause 60% capacity loss. Worse, every 10°C rise doubles chemical reaction rates, cutting lifespan by half. With fast-charging tech now mainstream, heat buildup from high-current cycles raises thermal runaway risks.

This is where Battery Thermal Management Systems (BTMS) ⇱ come in. A smart BTMS balances rapid cooling in heat and insulation in cold, keeping batteries in their ideal temperature range. Current solutions include four main cooling paths: air, liquid, phase-change materials, and heat pipes—each balancing efficiency and cost.

Battery Air Cooling System

Air cooling ⇱ (or forced convection) is the most widely used method. It uses either natural airflow (from vehicle motion) or fans.

Natural convection: Simple, low-cost, but airflow is unpredictable.

Forced convection: More reliable, easier to maintain. However, uneven temperature distribution and limited cooling capacity (due to air’s low thermal conductivity) are key drawbacks.

Battery Arrangement Methods

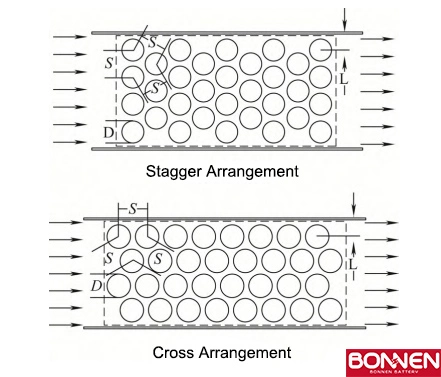

To boost cooling and temperature consistency, researchers study how batteries are arranged. There are three common setups: aligned, staggered, and trapezoidal.

1. In-line arrangement:

• Low airflow resistance.
• Poor turbulence generation, small contact area, weak heat transfer.

2. Staggered arrangement:

• Increases air-battery contact area, boosting heat transfer.
• Higher airflow resistance.

3. Ladder-type arrangement:

• Reduces downstream battery count, improving heat distribution consistency.

–

–

In a test with 32-cell (4×8) lithium batteries under forced air cooling, aligned, staggered, and cross arrangements were compared. At a 2C discharge rate and 20°C, raising air speed from 0.6 m/s to 1 m/s cut the max temperature rise by 10°C for aligned, 7°C for staggered, and 7°C for cross. Surprisingly, aligned outperformed the others—contradicting some past studies.

This shows battery layout, air inlet/outlet positions, and speed all affect cooling. For small packs, these factors don’t change much. But in larger, denser packs, uneven wind pressure can mess with cooling. Cranking up air speed might even waste energy without big gains.

So, for smaller systems, trapezoidal works well. For bigger ones, aligned might be better.

Serial vs. Parallel Ventilation

Battery temperature varies by position—edge batteries cool better than center ones. Ventilation design needs to even this out. There are two types: serial and parallel.

• Serial: Air flows through batteries one by one.
• Parallel: Air hits multiple batteries at once.

A test used 8 26650 batteries (4-series, 2-parallel, 14.8V, 4.6Ah). With charging gear, sensors, and a wind tunnel (0.5–30 m/s), a 2D simulation via ANSYS/FLUENT showed airflow patterns.

Another study optimized prismatic battery packs with 8 square cells at 5C discharge. Placing the inlet and outlet mid-pack dropped the max temperature by 4.3°C and the temperature gap by 6.0°C compared to a Z-type setup.

Air Cooling Pros and Cons

Pros:

• Simple, reliable design.
• Lower cost compared to other methods.
• Can help vent gases in case of cell failure.

Cons:

• Limited cooling capacity, especially for high-power batteries.
• Can result in uneven temperatures.
• Less effective for densely packed batteries.
• Fans add weight, noise, and consume energy.

What’s Next?

While air cooling is suitable for some applications, its limitations drive the need for more advanced solutions, especially in high-performance EV battery packs ⇱.

Stay tuned for our next blog post, where we’ll explore Liquid Cooling Systems ⇱.
