• Cold Temperatures (–20°C to +10°C): Capacity falls off steeply and nearly exponentially. For example, one test shows ~55% capacity for an LFP cell (and ~48% for NMC) at –20°C. Low temps thicken the electrolyte (viscosity can 4× higher at –10°C) and spike resistance, so lithium ions move very slowly. The SEI layer ⇱ on the anode grows thicker and lithium plating ⇱ can occur, locking up lithium irreversibly. In short, cold = low throughput and fast capacity loss.

• Room/Moderate Temperatures (~23°C to 27°C): This is the sweet spot. Capacity is near 100% of nominal and very stable. Fluctuations are small and cycle life is best. Batteries are engineered to work optimally around room temperature.

• Warm/Hot Temperatures (40°C to 60°C): In the short term, warm temps make the cell kinetics faster: ions move easier and resistance drops, so you can see up to 105% of rated capacity around 40–45°C. However, this “boost” comes at a price: aging races ahead. Prolonged heat (>50°C) drives side reactions, damaging the SEI and electrolyte. Data show cycle life is cut dramatically (e.g. 60% shorter life at 55°C) and long-term capacity fades far faster.

Consider the table below, which illustrates typical capacity levels and effects by temperature:

–

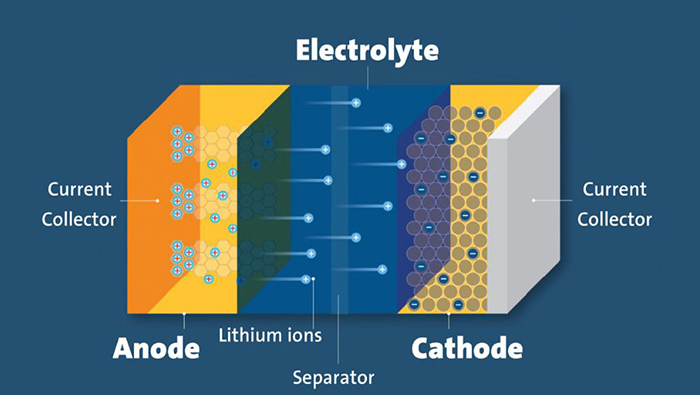

At low temperatures ⇱, the electrochemistry slows to a crawl. The battery’s liquid electrolyte becomes very viscous (some solvents can nearly solidify), so Li⁺ ions can’t migrate easily. In fact, tests show at –10°C the viscosity can jump ~400% and the charge-transfer resistance triples. This means the current that can flow is limited. The result is sharp polarization and large voltage drop under load, so the usable capacity plummets.

Moreover, the lithium solvation shell around each ion gets “stiffer” in cold weather ⇱, raising the energy needed for desolvation. The crystal lattices in the electrodes contract slightly, narrowing diffusion channels. For example, layered cathodes (NMC) have narrower Li⁺ pathways at –20°C. All together, Li⁺ ions de-intercalate (leave the cathode) and intercalate (enter the anode) much more slowly.

On the anode side, a bigger problem occurs: the solid-electrolyte interphase (SEI) layer becomes more resistive. During charging at low T, Li⁺ often plate as metallic lithium on the graphite surface rather than intercalating, because insertion kinetics lag behind. This metallic Li cannot store charge properly and also destroys active sites. In short, a growing dead Li layer steals capacity. One summary report notes that at low temps, “precipitation occurs at the negative electrode… Rct increases significantly. All these factors serve to severely lower performance”.

Key point: Cold means slow ions + thicker SEI + plating = drastic capacity loss.

–

For an electric vehicle, cold-temperature capacity loss does not simply mean a smaller battery capacity number. It can directly affect driving range, available discharge power, charging performance and battery life.

This is why an EV battery pack should be designed according to the vehicle’s real operating temperature, rather than only its nominal voltage and Ah rating.

For example, a vehicle that needs 15 kWh of usable energy at -20°C may require a different battery configuration than a vehicle operating primarily at 20–25°C.

Depending on the application, Bonnen engineers can evaluate cell chemistry, additional capacity margin, heating systems, thermal insulation, BMS temperature protection and charge/discharge current limits.

–

Warm Temperatures: Short-Term Boost vs. Long-Term Damage

When you heat up a lithium battery into the 30–45°C range, the electrolyte thins and ions zip around faster. Resistance at the electrode interfaces drops, and charge-transfer kinetics improve. In practice, every +1°C (25→45°C) can add about 0.8% more capacity. For example, at 45°C some cells measure ~105% of the nominal 25°C capacity. This is why devices sometimes show slightly increased range or capacity on warm days.

However, this apparent advantage is misleading over many cycles. At elevated temperatures, parasitic side-reactions accelerate. The electrolyte begins to decompose, producing gases and decomposed solids. The once-dense SEI layer on graphite turns porous and breaks down, offering less protection. Decomposition consumes lithium and electrolyte, “leading to irreversible capacity loss”. Also, electrode materials themselves can degrade faster (transition metals dissolve into the electrolyte, etc.). One technical report notes “at 40°C [compared to 25°C], loss of lithium inventory increases significantly,” driving capacity fade.

In summary, hot is a double-edged sword: warmth improves immediate power, but speeds up aging. Sustained use above ~50°C causes a sharp drop in cycle life (e.g. only ~40% remaining life at 55°C) and long-term capacity.

–

Conclusion

Temperature influences Li-ion batteries through coupled kinetic and thermodynamic effects. Cold imposes kinetic bottlenecks (thick electrolyte, slow ions, high Rct, plating), so capacity falls off quickly. Heat lowers barriers in the short run (boosting capacity) but drives thermodynamic degradation (electrolyte breakdown, material loss), so capacity falls off faster over time.

For battery designers and procurement engineers, this means thermal management ⇱ and material choices are crucial. Specialized products (like self-heating cells or high-temperature chemistries) can help. Bonnen Battery offers a wide range of lithium battery solutions tailored to challenging environments. Whether you need cold-resilient packs or robust high-temp systems, our experts can help you find the right solution. Contact Bonnen Battery for custom lithium solutions and keep your systems running optimally, whatever the weather.

Need an EV Battery for Extremely Cold Conditions?

For applications where low-temperature performance is one of the main design priorities, alternative battery chemistries such as sodium-ion batteries may also be worth evaluating.

Explore Our 96V Low-Temperature Sodium-Ion EV Battery →

–

FAQ (Frequently Asked Questions)

Q: Why does battery capacity drop so much in cold weather?

A: In cold conditions the electrolyte thickens and ion movement slows way down. For example at –10°C the electrolyte viscosity can rise ~4× and charge-transfer resistance ~3×, causing large polarization. The SEI layer also thickens and Li plating can occur. All this means fewer Li ions make it between electrodes, so available capacity shrinks.

Q: Is it normal for capacity to exceed 100% at warm temps?

A: Yes, mildly warm temps (30–45°C) boost capacity temporarily. Every +1°C in that range gives ~+0.8% capacity. Experiments show up to ~105% of 25°C capacity at ~45°C. But remember, this only holds short-term – high temperature ⇱ use quickly accelerates aging.

Q: What is the ideal operating temperature for a lithium-ion battery?

A: Generally around room temperature (20–30°C). Most batteries are rated at 25°C for baseline. Data suggest the optimum window is roughly 0–40°C. Within that range capacity is stable (near 100%) and aging is moderate. Above ~50°C, lifespan and capacity start to suffer significantly.

Q: What happens to the battery at –20°C?

A: Extreme cold (~–20°C) can cut capacity to ~50–60% of normal. The electrolyte is very sluggish, internal resistance is huge, and Li⁺ ions barely move. Also, lithium plating on the anode becomes likely, which “locks” lithium and causes irreversible loss. You need special low-temp cells or heating (thermal management ⇱) to use batteries effectively at –20°C.

Q: Why do LFP and NMC batteries perform differently in cold weather?

A: LFP cells tend to handle cold slightly better than high-Ni NMC/NCA cells. For instance, one test found LFP capacity ~55% at –20°C vs only ~48% for NMC. LFP can have ~40% better low-temperature performance ⇱ than NCA. This is partly because LFP’s chemistry is less sensitive to low-T kinetics.

Q: What exactly is the SEI and how does temperature affect it?

A: The SEI (solid-electrolyte interphase) is a thin film on the anode that forms during initial cycles. It’s critical for long-term stability. At low T, the SEI thickens and becomes resistive, which hinders Li⁺ insertion. At high T, the SEI can break down or grow uncontrollably, consuming electrolyte and lithium. In both cases, a damaged SEI leads to capacity loss.

Q: Do I need to warm up my battery before use in cold weather?

A: Yes, preheating or temperature management is often needed. Many EVs or battery systems include heaters to bring cells up to ~15–20°C before heavy use or charging. Charging at very low temperatures is risky because of plating. Preconditioning helps the cell reach its optimal range and prevents damage.

Q: How does high temperature use shorten battery life?

A: High temp speeds up all side reactions. Electrolyte starts to decompose, producing gas and sludge. The SEI becomes porous, and metals can leach from electrodes. These reactions consume lithium and raise internal resistance. In real tests, batteries at 40–50°C show much faster capacity fade than at 25°C. Also, high temp can promote lithium plating when combined with high SoC, further harming capacity.

Q: What is the safe temperature range for storing Li-ion cells?

A: For storage (no charge/discharge), typically 0–30°C is recommended. Even in storage, higher temps accelerate calendar fade. The general consensus is that staying below ~25°C maximizes life. The Chinese Serui guide notes that above 40°C even unused cells deteriorate faster.

Q: Can I operate a lithium battery at 60°C or higher?

A: Some batteries can work at 60°C in the short term, but it’s not ideal. Industrial cells often are rated up to ~60°C, but performance will degrade and cycle life will suffer. Above ~50°C, electrolyte breakdown becomes severe. If you must use high temperature environments, consider specially designed high-temp chemistries (e.g. Li-SOCl₂ primary cells) or active cooling.

Q: How can I mitigate these temperature effects in practice?

A: Use thermal management. Cool packs during hot use and warm them gently in cold. Control charging currents (e.g. slower charge in cold). Thermal insulation, phase-change materials, or heaters can help. Battery management systems (BMS) often include temperature monitoring. Ultimately, it’s best to design your battery system around Bonnen Battery’s expertise: we can advise on optimal chemistries, pack design, and thermal solutions.
