Assembling EV Lithium Battery Packs: Unpacking the Secrets of Bonnen Battery Production

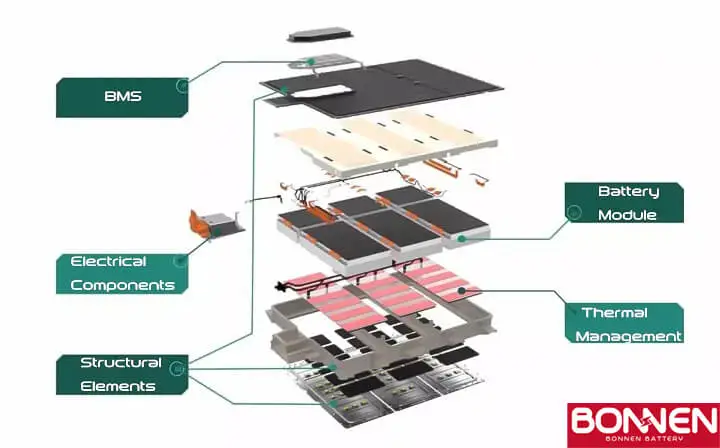

Before we dive into the nitty-gritty of assembling EV Lithium battery packs, let’s kick things off with a bang by checking out an explosive view – not literally, of course! It’s a three-dimensional assembly diagram that will unravel the mysteries of its typical structure.

Assembly of Battery Packs in Bonnen Battery

So, what’s under the hood of a lithium battery pack? Well, it’s like the Avengers of batteries, with battery cells, a Battery Management System (BMS), a thermal management system, all sorts of electrical wizardry (high and low-voltage connectors, wiring, and more), and some structural support (top cover, lower casing, brackets – the works!).

Now, for the tech-savvy folks out there, traditional lithium battery packs have those physical module structures for battery cells, while CTP battery packs are all about integrating the cells directly.

The BMS is the battery pack’s guardian angel – it keeps a watchful eye on all things electrical and thermal, and it even talks to the vehicle’s data.

To keep that battery temperature cool as a cucumber, we’ve got a squad of cool cats – water-cooled plates, heating films, thermal pads, and insulating boards. They’re the A-team of thermal management.

Our electrical system is like the neural network of the battery pack. It’s got high/low-voltage connectors, wiring, and more, making sure the electrical signals flow smoothly.

And then, we’ve got the structural heroes – the top cover, lower casing, and brackets. They’re like the architectural backbone of the battery pack.

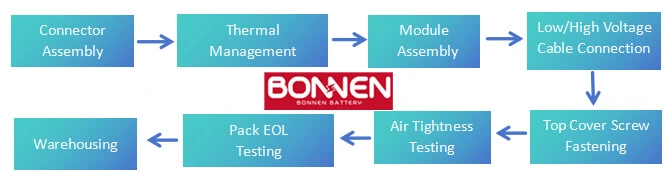

Now, think of making a battery pack like trying to fit an elephant into a refrigerator. Sounds crazy, right? Well, it’s a bit like that but with fewer tusks and trunks. We break it down into three steps: ① Stuffing components into the casing and hooking them up, ② Giving it a cozy cover, and ③ Giving it a test run. But hey, reality is a bit more complex than that. Here’s a production roadmap to give you a sneak peek:

Assembly of Battery Packs in Bonnen Battery

Step I: The Great Assembly Adventure

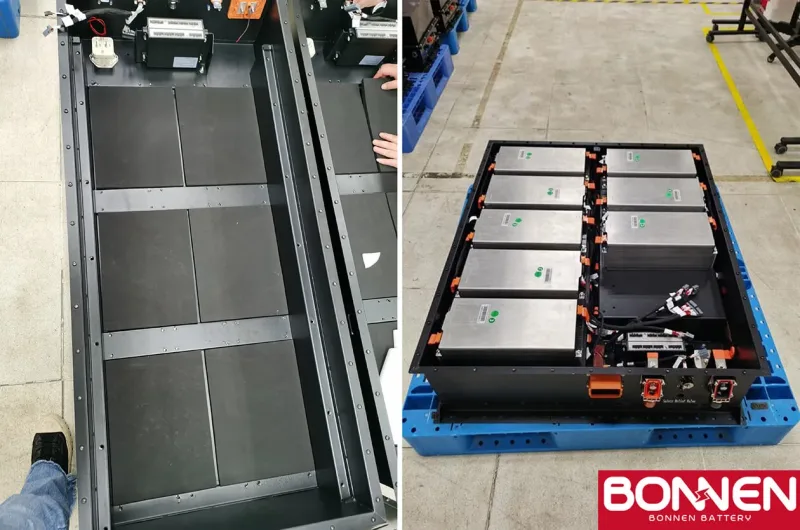

Before anything goes into the casing, we clean it up real nice and slap some adhesive on the bottom. Think of it as preparing the stage for our battery pack show. We need connectors too – high-voltage junction boxes – they’re like the stagehands making sure everything runs smoothly.

Assembly of Battery Packs in Bonnen Battery

Once those connectors are in place, we bring in the thermal management system – those water-cooled plates and thermal pads get to work. Then, we secure the modules or cell modules with bolts. But here’s the twist – the screw fastening part is like the secret sauce. Use the wrong bolt, miss a screw, or crack a bolt, and you’ve got a recipe for disaster. We’re talking about the right order, the perfect torque, and just the right angle of rotation.

Assembly of Battery Packs in Bonnen Battery

Now, for the electrifying part, we’ve got high-voltage wires connecting the battery pack and the electric vehicle. These high-voltage wizards need an electrician’s certificate and some snazzy insulating gloves. And don’t worry, that video of the worker arranging the wiring harness isn’t about high-voltage connections – it’s just showing off the harness condition.

Low-voltage wiring, on the other hand, connects the Battery Management Unit (BMU) and Cell Monitoring Unit (CMU). They’re like the messenger pigeons, making sure everyone’s talking in real-time. After all that wiring magic, along with some top-mounted thermal gadgets, we pop on the top cover, and voilà! The battery pack is ready for its close-up in various tests.

Step II: The Full-Pack Testing Extravaganza

Now, let’s talk about the Hollywood-style testing phase. We’ve got two big stars here – air tightness testing and End of Line (EOL) testing.

First up, the air tightness testing. Electric vehicles face all sorts of wild weather, so our battery pack needs to be airtight like a submarine. We’ve got two types of tests here: regular air testing and trace gas testing.

Regular air testing is like giving the battery pack a breathalyzer – we check if it’s holding its breath (air) properly. Trace gas testing is fancier – we fill the pack with trace gases like helium or hydrogen and then analyze it with some high-tech stuff. But honestly, regular air testing is the superstar here.

EOL testing is like the final exam for our battery pack. It has to ace insulation resistance, withstand voltage, cell voltage, current, temperature, State of Charge (SOC), State of Health (SOH), communication, and more. Only when it passes all these grueling tests does it get the green light to go to the warehouse for distribution.

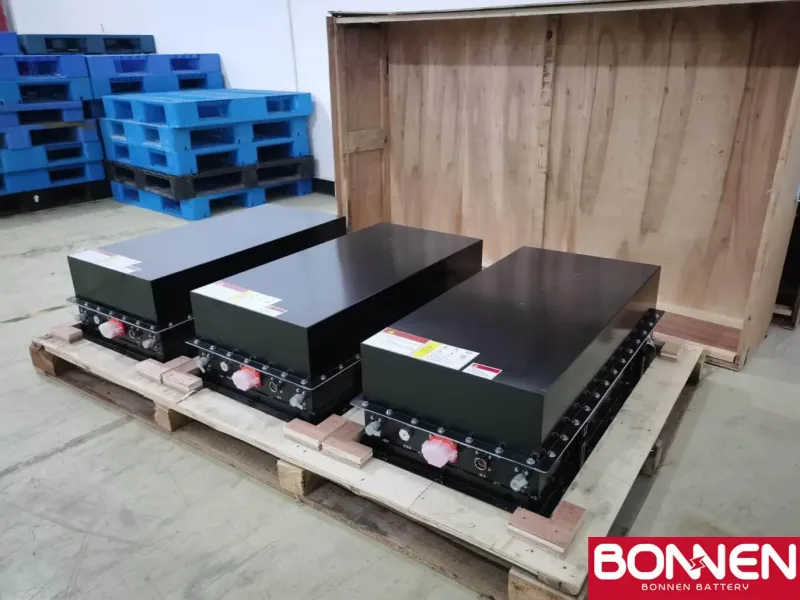

Assembly of Battery Packs in Bonnen Battery

So, there you have it – the assembly of EV lithium batteries is a wild ride, filled with attention to detail and a whole lot of quality checks. It’s like the blockbuster movie of the electric vehicle world, powering everything from cars to clean energy.
